powerCON TRUE1 cable female
neutrik-jp / 製品情報 / powerCON TRUE1 - Power cord open-end

powerCON TRUE1 - Power cord open-end

Download Data Sheet

Ready-made overmolded power cord in protection class IP65. The cable utilizes standard duty cord with 3 conductors with cross section 1.5 mm2  or AWG 12.

The cables are equipped with overmolded Neutrik powerCON TRUE1 NAC3FX-W or NAC3MX-W. The other end is open for termination of local connectors. Overmolded local connectors on request. The cables are available in different lengths.

Downloads
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
nkpf_nc
pdf - 480.23 KB
nkpf-nc-
dxf - 1.17 MB
左
UL Certificate (ELBZ2.E343814) cUL Certificate (ELBZ8.E343814)

Cable Part Number Breakdown

powerCON TRUE1 Part Number Breakdown Power Cord
powerCON TRUE1

The powerCON TRUE1 is a locking waterproof 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

powerCON TRUE1 Power Cable male

powerCON TRUE1 Power Cable male

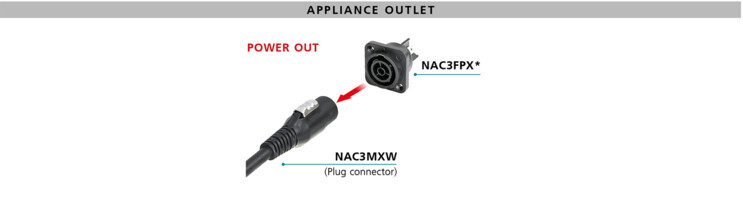

Mating scenario powerCON TRUE 1 chassis connector NAC3FPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3FPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

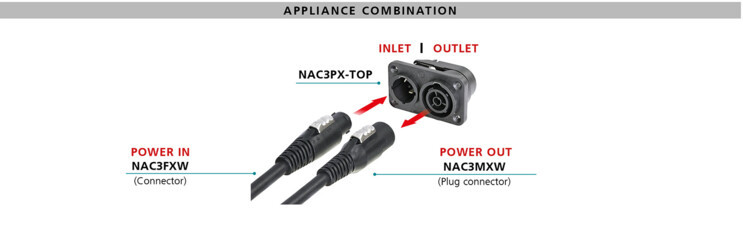

Mating scenario powerCON TRUE 1 chassis connector NAC3PX

Mating scenario powerCON TRUE 1 chassis connector NAC3PX

powerCON TRUE1 Power Cord

powerCON TRUE1 Power Cord
