opticalCON HYBRID MED Connector

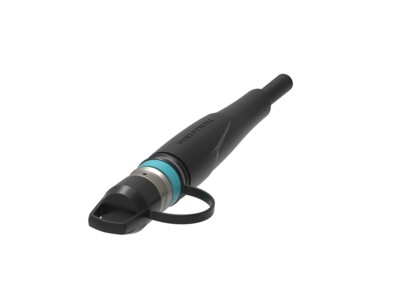

Pre-assembled male to male cable with 16 multimode fiber channels and 2 power pins. opticalCON HYBRID MED is more robust, reliable and easier to maintain than any other common hybrid systems. With new technology based on fiber lenses, Neutrik's opticalCON HYBRID MED achieves an extremely robust signal with minimal loss. The optical connection is exceptional well protected against dirt and dust by its lenses and an additional sealing cover.

Features & Benefits

Ruggedized and dirt protected hybrid connection system

- 1 lensed MPO connector with 16 fiber channels
- 2 power contacts
- 1 ground contact
Available in standardized length (3m, 5m, 8m and 10m) and packaging versions
Accommodates a unique lensed optical MPO connector
Excellent dust and dirt protection
Easy to maintain and nurse-proof design with glove protection
Shielded system with EMI protection design
Suitable for medical application like operation rooms (indoor)

Downloads

BDA 598 V2 - opticalCON HYBRID MED Cleaning Instruction

pdf - 832.63 KB

NEUTRIK opticalCON HYBRID MED NF27 V4 DE 202010

pdf - 1.66 MB

opticalCON HYBRID MED Application

pdf - 981.48 KB

cable datasheet opticalCON HYBRID MED

pdf - 323.96 KB

NTP14 - opticalCON HybridMED

pdf - 5.1 MB

Technical Information

Product
Title	NKO16M-XP-0-*
Gender	Male

Electrical
Contact resistance	< 7 mΩ
Insulation resistance	> 10 GΩ (initial)
Mains	12V AC / 10A / @50 Hz

Mechanical
Cable retention	500 N
Insertion force	< 45N
Withdrawal force	< 45N
Lifetime (typ.)	10'000 mating cycles
Wiresize (power)	4x 20 AWG
Locking device	Push/Pull

Material
Boot	TPU
Bushing	Zinc diecast (ZnAl4Cu1)
Contacts	Brass
Insert	Polyetherimide and Polycarbonate (PEI+PC)
Shell	Zinc diecast and Polyoxmethylen
Shell plating	Nickel
Strain relief	Brass

Environmental
Flammability	UL94 V-0
Temperature range	-40°C to +75°C

Optical
Insertion loss	Typ. 0.65 dB per connection / Max. 0.9 dB per connection
Return loss	Typ. 28 dB per connection / Min. 25 dB per connection
Channels	16
