hybrid_med_breakoutcable
neutrik-jp / 製品情報 / opticalCON® Fiber Optic Connection System / opticalCON® HYBRID MED / opticalCON HYBRID MED Breakout Cable

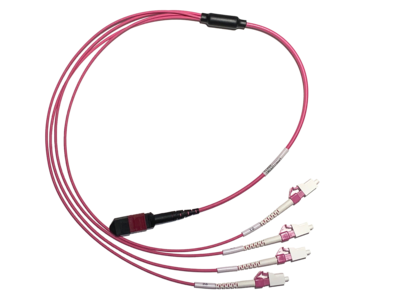

opticalCON HYBRID MED Breakout Cable

Download Data Sheet

High performance lensed MTP® breakout cable for permanent and temporary installations. Standard premium grade A LC's (multimode OM4) guarantee low insertion loss values and high performance.

Features & Benefits
  • Lensed High performance MTP® ferrule
  • Standard split length: 30 cm
  • LC breakout connectors available with 4x, 6x, 8x and 16x
  • Corning ClearCurve® OM4 performance cable
Downloads
BDA 598 V2 - opticalCON HYBRID MED Cleaning Instruction
pdf - 832.63 KB
NEUTRIK opticalCON HYBRID MED NF27 V4 DE 202010
pdf - 1.66 MB
opticalCON HYBRID MED Application
pdf - 981.48 KB

Technical Information

Product
Title (4xLC) NKOB16M4-XP-0-*
Title (6xLC) NKOB16M6-XP-0-*
Title (8xLC) NKOB16M8-XP-0-*
Title (16xLC) NKOB16M-XP-0-*
Gender Monolithic
Mechanical
Lifetime (typ.) 10'000 mating cycles
Locking device Push/Pull
Mounting direction Front mounting
Environmental
Temperature range -10°C to +70°C
Optical
Insertion loss Typ. 0.65 dB per connection / Max. 0.9 dB per connection
Return loss Typ. 28 dB per connection / Min. 25 dB per connection
Cable
Jacket Material FRNC
Weight 8 kg/km
Fire Load 0.14 MJ/m
Flammability
Cable is flame retardant acc. to IEC 60332-1-2
Smoke Density acc. to IEC 60332-3-22 Cat.A
Halogen-Free acc. to IEC 60754-1
Acidity of the combustion gases acc. to IEC 60754-2
Related Products
NKO16M-XP-0
opticalCON HYBRID MED Rendering Website.jpg
opticalCON HYBRID MED Connector
NO16FD-XP
fire_6 700x470.jpg
opticalCON HYBRID MED Chassis
