Cable Connector Assembly DREGONFLY and 5th
neutrik-jp / 製品情報 / opticalCON® Fiber Optic Connection System / opticalCON® DRAGONFLY / opticalCON® DRAGONFLY Cable / opticalCON DRAGONFLY cable female - fixed male

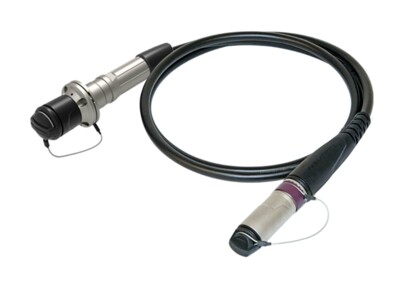

opticalCON DRAGONFLY cable female - fixed male

Download Data Sheet

NEW: Pre-assembled female - fixed male SMPTE cable with 2 lensed single-mode ferrules and 4 copper pins.

DRAGONFLY is more robust, reliable and easier to maintain than common hybrid camera signal transmission systems. With technology based on fiber lenses and fusion splicing, Neutrik's DRAGONFLY achieves an extremely robust signal with minimal loss. The optical connection is exceptionally well protected against dirt and dust by its lenses and an additional sealing cover.

The cable connector comes pre-assembled. Spare parts are available as single components as well. Suitable chassis connectors ist NO2FW-XP

Features & Benefits

Suitable for rugged Wall / panel - CCU installation indoors (studio) and outdoors (OB-Truck) according to SMPTE standard

  • Waterproof according to IP68 safety standard in mated condition
  • Ruggedized and dirt protected hybrid connection system

    - 2 unique lensed optical connectors
    - 2 signal contacts
    - 2 power contacts
    - 1 ground contact
  • Accommodates a unique lensed optical fusion splice connector
  • Robust and reliable: all-metal housing, overall copper braided shield, stainless steel strength member, strong black PUR outer jacket, spring loaded push-pull locking and strong cable retention
  • Excellent dust and dirt protection
  • Available in different lengths
  • Easy to repair
Downloads
st-no2sfx-xp
pdf - 58.66 KB
st-no2sfx-xp
dxf - 655.78 KB
st-no2smx-xp
pdf - 70.16 KB
d-no2sfx-xp
stp - 8.45 MB
ST-NO2MW-XP-KIT
dxf - 1.84 MB
ST-NO2MW-XP-KIT
stp - 2.83 MB
BDA 566 - opticalCON DRAGONFLY - NKO2S-XP-x Handling Instruction
pdf - 1.76 MB
NTP11 V2 - opticalCON DRAGONFLY
pdf - 2.28 MB
DRAGONFLY Business Case - Sales Comparison
vnd.openxmlformats-officedocument.spreadsheetml.sheet - 38.58 KB
NEUTRIK_DRAGONFLY_Application Instruction 202206
pdf - 2.79 MB
Handling instruction NKO2SMW-XP
pdf - 9.22 MB
NEUTRIK_DRAGONFLY-brochure-NF25V8-202206
pdf - 1.85 MB
Certificate_CB_SE-108042M1
pdf - 68.9 KB
Declaration of Conformity CE
pdf - 408.38 KB
UKCA Declaration of Conformity _DRAGONFLY
pdf - 216.22 KB
NEUTRIK_Insertion_Loss_Calculator
vnd.openxmlformats-officedocument.spreadsheetml.sheet - 162.68 KB

Technical Information

Product
Title NKO2SMW-XP-0-*
Gender male/female
Electrical
Contact resistance < 7 mΩ
Insulation resistance > 10 GΩ (initial)
Mains 240V AC / 10A / 50Hz
120V AC / 10A / 60Hz
300V DC / 7A
Sense 42V AC peak / 1-3A / ≤1kHz
60V DC / 1-3A
Mechanical
Cable retention 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 10'000 mating cycles
Wiresize Power 4 x 20 AWG
Wiresize Sense 2 x 24 AWG
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Contacts Brass
Insert Polyetherimide and Polycarbonate (PEI+PC)
Shell Zinc diecast and Polyoxmethylen
Shell plating Nickel
Strain relief Brass
Environmental
Flammability UL94 V-0
Protection Class IP68 , UL50E enclosure type 4 (mated with sealing KIT SCXP-*)
Certification according to IEC 61984:2009
IEC 60529
UL 1977 :2019
CSA C22.2 No. 182.3 :2016
UL50E Type 4
Salt spray test Evaluated according to UL50E
UV Test Evaluated according to UL50E
Optical
Insertion loss Typ. 0.6 dB per connection / Max. 1.0 dB per connection
Optical connector XB2 Feedthrough

Cable cross section

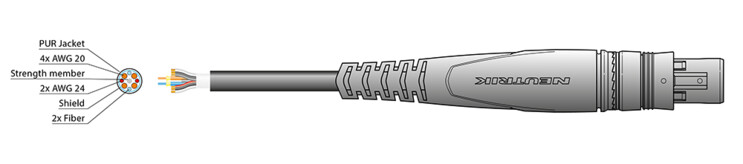

DRAGONFLY - Cabledrowing

Packaging options and max. cable length

opticalCON-DRUM-Packagin---013456
Available camera systems

SONY: HDC, HSC (discontinued), HXC (discontinued)
GRASS VALLEY: LDX82, LDX85N, LDX100/150, LDX86, LDX86N
MULTIDYNE: SILVERBACK V Camera Adaptor
IKEGAMI: UHK-430/CCU-430, UHK-X700/BSX-100​
PANASONIC: AK-UC, AK-HC
