NZPFD-4E

Download Data Sheet

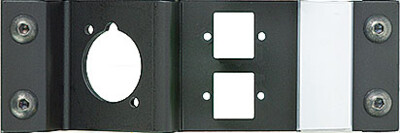

The NZPFD-4E plate can be loaded with one opticalCON DUO or QUAD chassis connector and two E2000 compact chassis connectors. Adaption solution to meet existing non-opticalCON fiber installation.

NZPFD-4E (including lettering possibility) is delivered without connectors. opticalCON chassis connectors can be ordered separately, E2000 chassis connectors are not supplied by Neutrik.
