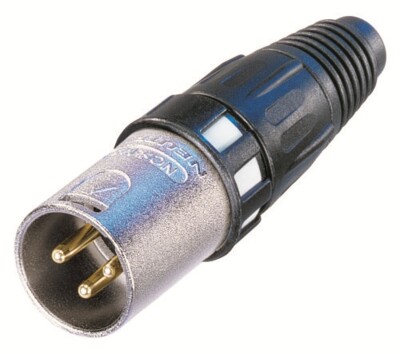

NC3MXCC
XCCシリーズはデジタル・オーディオ信号の伝送に対応したXLRタイプコネクターです。
ハウジング嵌合部に360度のグランドスプリングを配置。
また、ス リーブの接続は圧着式を採用することにより、ノイズに対するシールド効果を高め、効率的に確実なデジタル信号の伝達を可能にします。
Features & Benefits
XLRタイプオス型3ピンケーブルコネクター XCCシリーズ
・コンタクト：金メッキ
・ハウジング：ニッケルメッキ
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC3MXCC |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Shielding effectiveness | > 55 dB @ 1.3 GHz |
| Mechanical | |
|---|---|
| Cable O.D. | 5.4 - 6.2 mm |
| Crimp size | 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E) |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm² |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Boot | Polyurethan |
| Coding Ring | PA 6 15% GR |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Crimp ferrule | CuZn39Pb3, Ni plated |
| Insert | Polyamide (PA66) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Circumferential ground spring | CuSn6, Ni plated |
| Environmental | |
|---|---|
| Approvals | UL |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
