HX-R-BNC

Download Data Sheet

圧着工具

対応ダイス（XXクリンプシリーズ、DLXクリンプシリーズ）：DIE-R-HA-1
対応ダイス（XCCシリーズ）：DIE-R-BNC-PG
対応ダイス（BNCシリーズ）：DIE-R-BNC-PU、DIE-R-BNC-PY、DIE-R-BNC-UG、DIE-R-BNC-ZPLUS、DIE-R-BNC-X

※製品毎に適切なダイスを選択する必要があります。それぞれの製品ページに記載のアクセサリをご利用下さい。

Technical Information

Product
Title HX-R-BNC
Mechanical
Wiresize
アクセサリー
audio
DIE-R-HA-1

圧着工具用交換ダイス　XXクリンプシリーズ用
video
DIE-R-BNC-PG

圧着工具用交換ダイス　HX-R-BNC用
video
DIE-R-BNC-PU

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 7.36 mm (B)
video

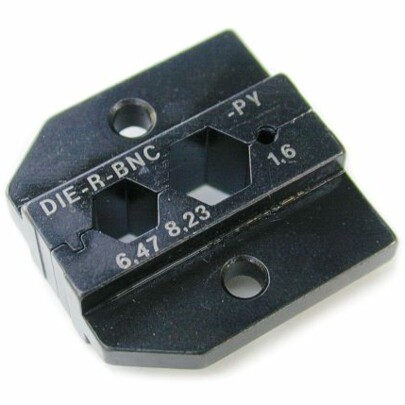

DIE-R-BNC-PY

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 8.23 mm (B)
video
DIE-R-BNC-UG

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 7.36 mm (A), 5.0 mm (B)
industrial
DIE-R-BNC-PDC

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 4.53 mm (B), 4.06 mm (C)
audio
DIE-R-BNC-PJ

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.41 mm (B)
industrial
DIE-R-BNC-PS

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 7.01 mm (B)

DIE-R-BNCX-PDG

DIE-R-BNCX-PU

DIE-R-BNC-ZPLUS

Crimp tool die for HX-R-BNC Pin crimping: HEX 1.8 mm Shield and jacket: HEX 10.0 mm (A)

DIE-R-BNC-X

Crimp tool die for HX-R-BNC Pin crimping: HEX 1.75 mm Shield and jacket: HEX 9.73 mm (A)
