NC3FP-BAG-1
PシリーズはXLR-*-31/32と取り付け互換性のあるXLRタイプのレセプタクルコネクターです。
さらに弊社のPシリーズではブラックボディ・金メッキコンタクト仕様もお選びいただけます。
Features & Benefits

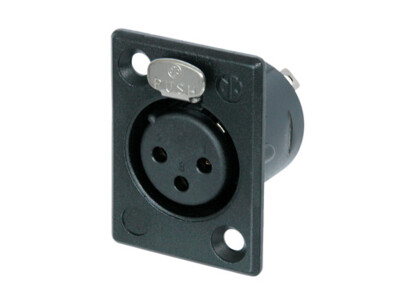

XLRタイプメス型3ピンレセプタクルコネクター Pシリーズ ブラック
・コンタクト：銀メッキ
・ハウジング：黒クロームメッキ
・取り付け可能パネル：厚み1.0～3.0mm
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC3FP-BAG-1 |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Chassis shape | P |
| Material | |
|---|---|
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Locking element plating | Nickel |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Environmental | |
|---|---|
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
