NBLC75BVZ17
rearTWIST HD Large BNCケーブルコネクターは太径ケーブルに特化した高精度の75Ω BNCケーブルコネクターです。特許取得済みのブッシングを使用し、堅牢性とイージーアクセスを両立しました。
Features & Benefits
rearTWIST Large ケーブルコネクター オス
・適合ケーブル
Belden 7731A (ANH), CAE HD16720LSZH, Draka 1.6/7.3AF, RG 11, Klotz V16/72, Canford SDV-HD, Nexans HF 75 1,6/7,2 02Y(ST)C(ST)H, Percon VK9, Tesca Sphere
Belden 7731A (ANH), CAE HD16720LSZH, Draka 1.6/7.3AF, RG 11, Klotz V16/72, Canford SDV-HD, Nexans HF 75 1,6/7,2 02Y(ST)C(ST)H, Percon VK9, Tesca Sphere
・クリンプサイズ
ピン：1.8 mm
シールド：10.0 mm (hex)
ピン：1.8 mm
シールド：10.0 mm (hex)
Downloads
Technical Information
| Product | |
|---|---|
| Title | NBLC75BVZ17 |
| Connection Type | BNC 75 Ω |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz |
| Mechanical | |
|---|---|
| Cable O.D. | 10.4 mm |
| Cable retention | > 30 N (Center) |
| Crimp size | 10.0 mm (HEX) |
| Crimp size (pin) | 1.8 mm |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Cable anchoring | Jacket crimping |
| Material | |
|---|---|
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Optalloy® |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +85 °C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
Accessories
video
BST-BLC-CY
Turquoise boot for the rearTWIST Large BNC cable connectors
video
CAS-BNC-T
BNC tool kit including the ideal working tools for the assembly of our BNC cable connectors
HX-R-BNC
圧着工具
video
CS-BNC-LCV
Coax cable stripper for cable O.D. ≥8.0 mm

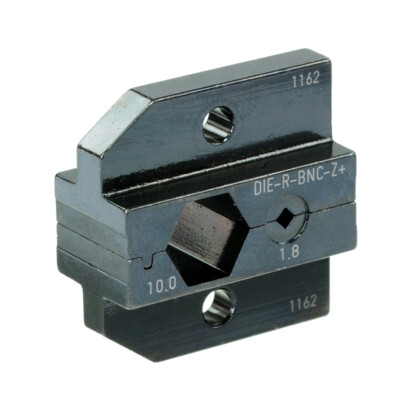

DIE-R-BNC-ZPLUS
