NBLC75BSX14
*** DISCONTINUED ***
rearTWIST HD Large BNCケーブルコネクターは太径ケーブルに特化した高精度の75Ω BNCケーブルコネクターです。特許取得済みのブッシングを使用し、堅牢性とイージーアクセスを両立しました。
Features & Benefits
rearTWIST Large ケーブルコネクター オス
・適合ケーブル
Draka 1.4/6.6 AF, Percon VK8, Tesca Massimo
・クリンプサイズ
ピン：1.75 mm (hex)
シールド：9.73 mm (hex)
Downloads
Technical Information
| Product | |
|---|---|
| Title | NBLC75BSX14 |
| Connection Type | BNC 75 Ω |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz |
| Mechanical | |
|---|---|
| Cable O.D. | 9.5 mm |
| Cable retention | > 30 N (Center) |
| Crimp size | 9,73 Hex crimp (shield) acc. IEC 60803 (die designation H) |
| Crimp size (pin) | 1,75 Hex crimp (pin) acc. IEC 60803 (die designation X) |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Cable anchoring | Jacket crimping |
| Material | |
|---|---|
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Optalloy® |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +85 °C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
Accessories
video

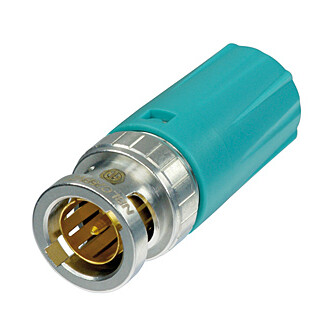

BST-BLC-CY
Turquoise boot for the rearTWIST Large BNC cable connectors
video
CAS-BNC-T
BNC tool kit including the ideal working tools for the assembly of our BNC cable connectors
HX-R-BNC
圧着工具
video

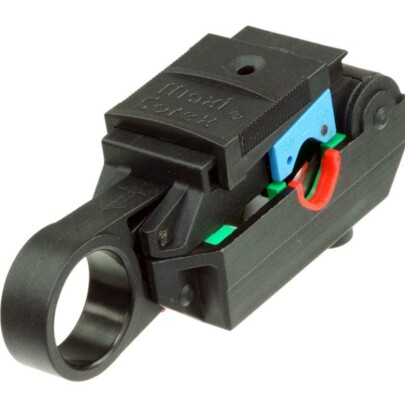

CS-BNC-LCS
PHASE OUT Coax cable stripper for cable O.D. ≥8.0 mm

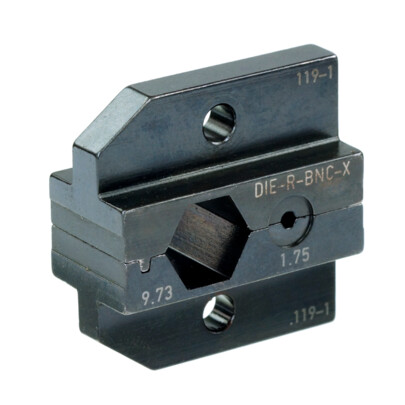

DIE-R-BNC-X
Crimp tool die for HX-R-BNC Pin crimping: HEX 1.75 mm Shield and jacket: HEX 9.73 mm (A)
