NAC3M-TRUE1-L

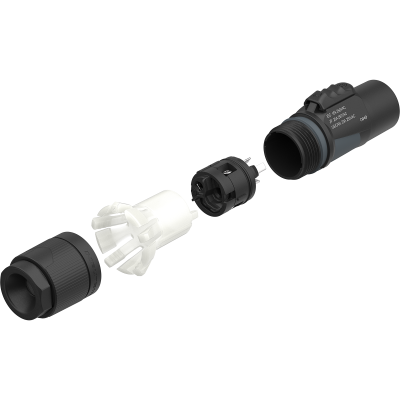

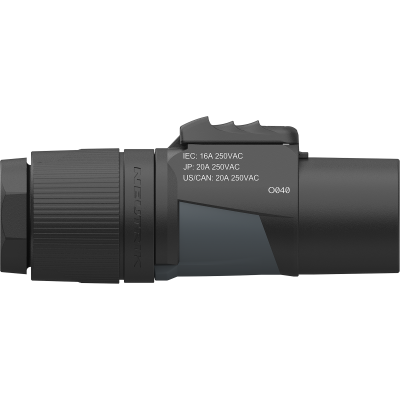

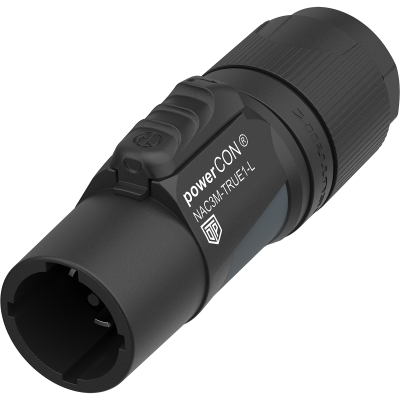

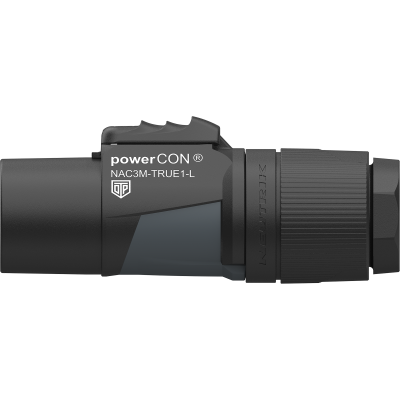

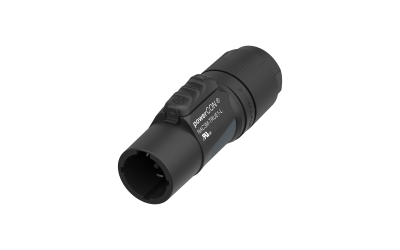

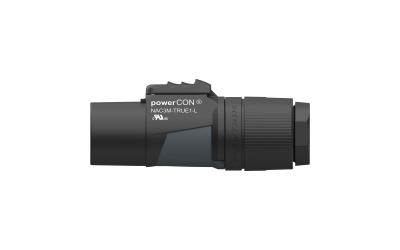

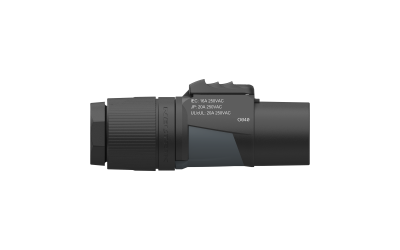

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features and Benefits
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Lockable single phase connector
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- UL Certified According to UL 498
- IP65 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
Downloads
3D Model NAC3M-TRUE1-L (STP)
stp - 5.21 MB
Drawing NAC3M-TRUE1-L (PDF)
pdf - 643.65 KB
Drawing NAC3M-TRUE1-L (DXF)
dxf - 3.98 MB
BDA 705 V5 - powerCON TRUE1 Cable Connector NAC3M-TRUE1-S & NAC3M-TRUE1-L
pdf - 3.81 MB
24-108_NEUTRIK_Broschuere_powerCON TRUE1 cable connectors_TXT_IP65_67
pdf - 1.73 MB
Certificate_ENEC_40058029 (2024-02-01)
pdf - 302.58 KB
Certificate_CB_DE1-68350
pdf - 86.56 KB
UL Certificate UL-US-2437324-1
pdf - 257.07 KB
CSA Certificate UL-CA-2428569-1
pdf - 153.42 KB
CB Certificate Australia-New Zealand standards NAC3M-TRUE1-S + NAC3M-TRUE1-L
pdf - 142.3 KB
UL 498 Certificate UL-CA-20110501
pdf - 331.75 KB
Technical Information
| Product | |
|---|---|
| Title | NAC3M-TRUE1-L |
| Product family | powerCON® TRUE1 |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | >0.1GΩ (after damp and heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | 16 A / 250 V AC according to EN IEC 60320-1 |
| Rating America | 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 20A/ 250 V AC according to UL 498 |
| Mechanical | |
|---|---|
| Cable O.D. | 10 - 16 mm (0.39 – 0.63 inches) |
| Lifetime | > 5000 mating cycles |
| Wiresize (mm²) | 1.0 – 2.5mm² |
| Wiresize (AWG) | 14 - 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 μm Ag |
| Locking element | Polyamide (PA 66) |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA 66) |
| Shell | Polyamide (PA 66) |
| Strain relief | Polyketon |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP 65 / 67 (mated or with closed caps) |
| UV resistance | F1 rated material withstands UV exposure |
| Temperature range | -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1 |
