opticalBAR

Download Data Sheet

A compact, rugged fiber breakout solution designed for professional applications where flexibility, reliability, and durability matter. With an IP65 rating when mated, the opticalBAR enables smart fiber distribution in the most demanding environments.

Fully compatible with the opticalCON® ADVANCED series, the opticalBAR is available in the following core variants:



Product Code From chassis To chassis Fibertype

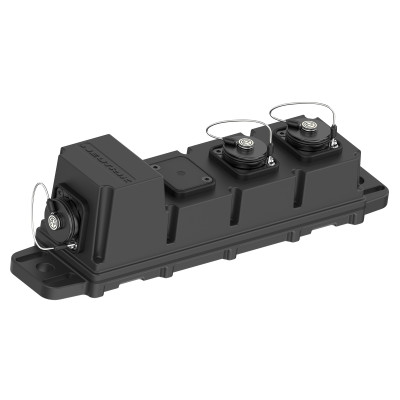

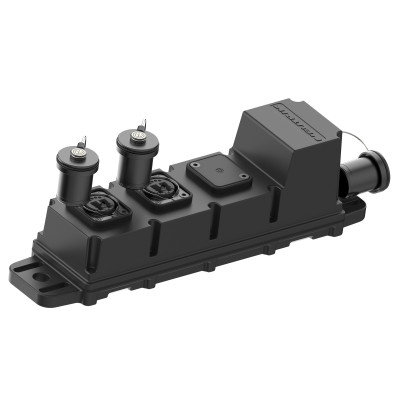

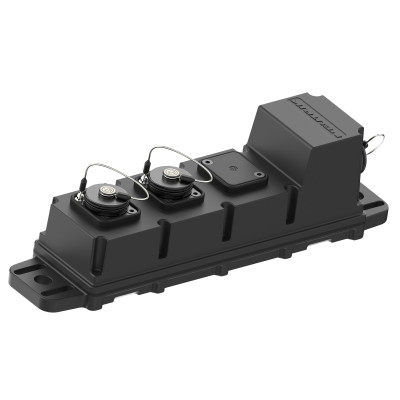

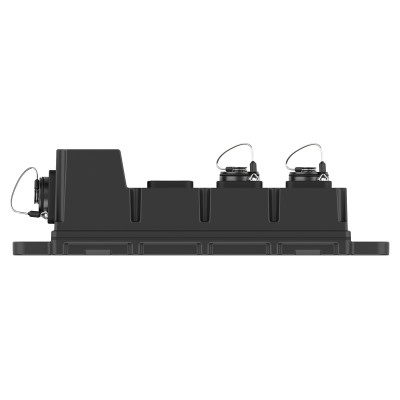

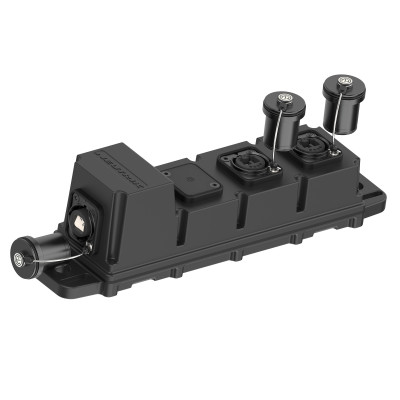

NO4M-OC-B2NO2-A 1x opticalCON® QUAD MM 2x opticalCON® DUO MM Multimode
NO4S-OCB2NO2-A 1x opticalCON® QUAD SM[PC] 2x opticalCON® DUO SM[PC] Singlemode
NO4SA-OCB2NO2-A 1x opticalCON® QUAD SM[APC] 2x opticalCON® DUO SM[APC] Singlemode

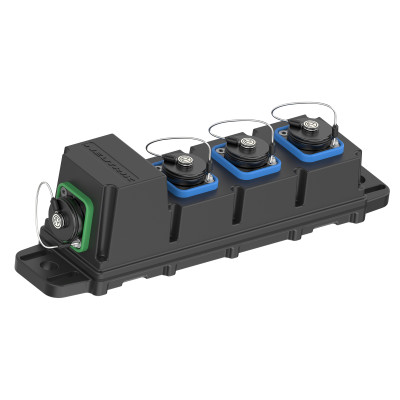

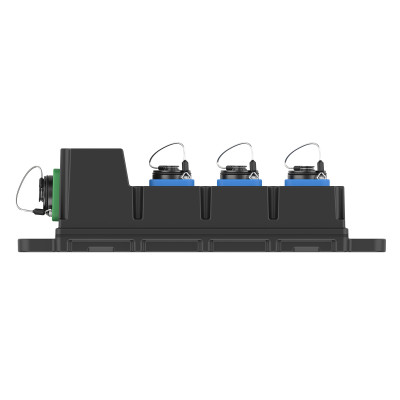

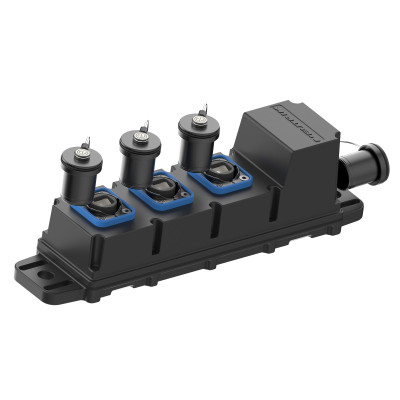

NO12M-OCB3NO4-A 1x opticalCON® MTP®12 MM 3x opticalCON® QUAD MM Multimode

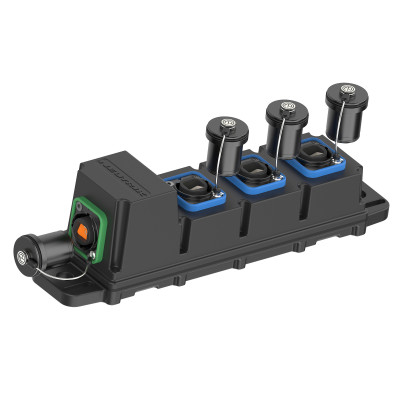

NO12SA-OCB3NO4-A 1x opticalCON® MTP®12 SM[APC] 3x opticalCON® QUAD SM[PC] Singlemode
Features & Benefits
  • Flexible mounting options: Mounting holes for screws, Velcro straps and pegs; Truss clips (available soon)
  • Outdoor Ready: IP65 rated in mated conditions
  • Full compatibility with our opticalCON® ADVANCED products
Downloads
3D Model - NO12SA-OCB3NO4-A
stp - 29.84 MB
3D Model - NO4S-OCB2NO2-A
stp - 32.36 MB
2D Drawing - NO4M-OCB2NO2-A
pdf - 1.04 MB
2D Drawing - NO12SA-OCB3NO4-A
pdf - 1 MB
opticalCON Product Catalogue
pdf - 48.01 MB

Technical Information

Product
Title opticalBAR
Connection Type Breakout Adapter
Gender female
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 1000 mating cycles
Locking device Push-Pull
Environmental
Temperature range -25 °C to +70°C
Protection class IP65 (in mated condition)
Optical
Insertion loss LC < 0.4 dB per connection
MTP® < 0.9 dB per connection
Optical connector LC or MTP®
Accessories

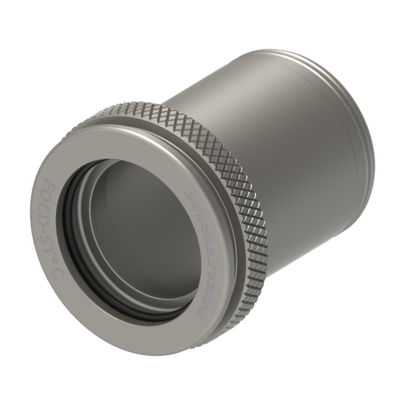

FOCD-STC

オプティカルコンDUOとMTPのレセプタクルコネクター用クリーニングサービスツール
audio
NKO4S-A - opticalCON QUAD ADVANCED CABLE CONNECTOR ASSEMBLY.png

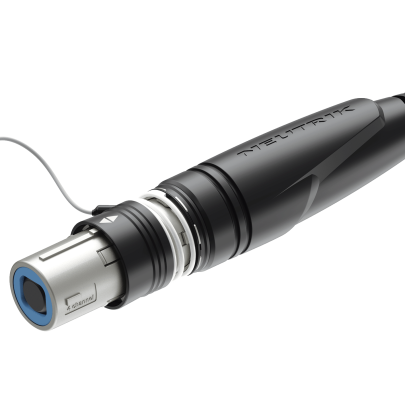

opticalCON QUAD

Assembled, rugged and lightweight 4-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in single and multi mode (PC or APC).

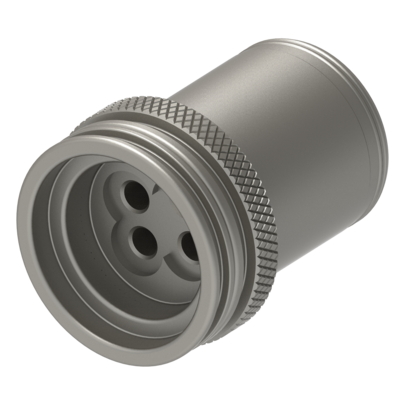

FOID-STQC

オプティカルコンQUAD レセプタクルコネクター(NO4FDW-A)用クリーニングサービスツール

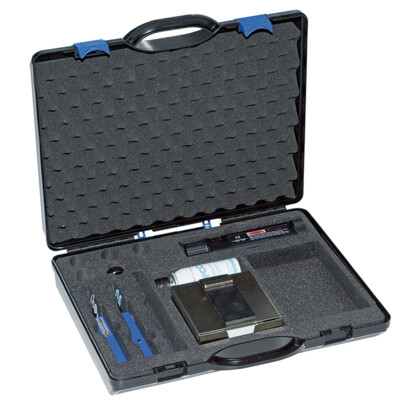

CAS-FOCD-ADV

opticalCON（オプティカルコン） セルフクリーニングキット

 NKO2S-A - opticalCON DUO ADVANCED CABLE CONNECTOR ASSEMBLY.png

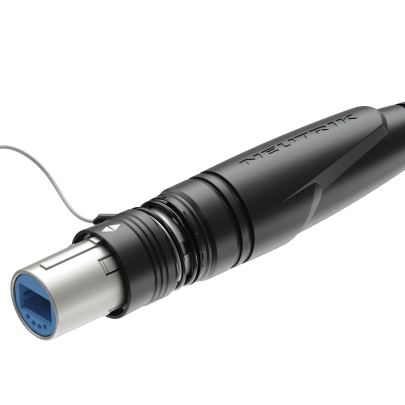

opticalCON DUO

2M、2S（A）：オプティカルコン 2芯ケーブルコネクター

 opticalCON ADVANCED Cable Connector MTP12.png

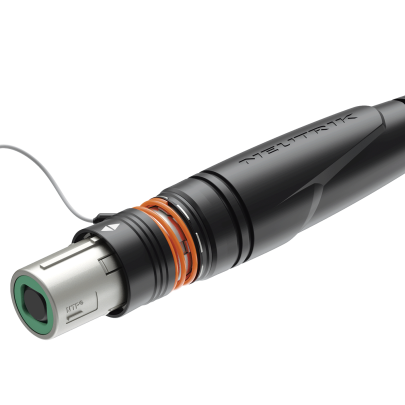

opticalCON MTP® 12 ケーブル
