neutrik-jp > FAQ > opticamSWITCH

opticamSWITCH

How is the opticamSWITCH connected?

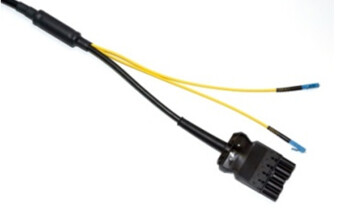

Copper based signals as power supply for camera and sense signals are connected with WIELAND power connectors WLC-OCS-M or WLC-OCS-F. The fiber signal is connected with regular LC simplex connectors. Neutrik offers in-house terminated breakout cables in individual lengths.

connect the opticamSWITCH
What happens in case of a defective power supply?

The opticamSWITCH contains main and auxiliary power supplies which are connected to independent power circuits. In terms of voltage drop down the auxiliary power supply automatically serves the opticamSWITCH with required power.

Attention opticamSWITCH
How can I control the opticamSWITCH?

Camera routing can be done by Neutrik´s operator software or manually on the front panel from the opticamSWITCH.

In addition several broad control systems as from BFE and DNF-controls include the possibility to integrate the opticamSWITCH to their system.

What is the maintenance interval on the opticamSWITCH?

No frequent maintenance on fiber cables required due to all connections are hardwired.

Can I add further opticamSWITCH devices to my existing installation?

The opticamSWITCH is an IP based system. The existing setup can be easily extended with further opticamSWITCH units.

How does the fiber routing works?

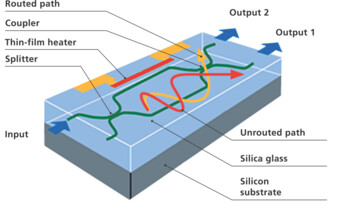

The opticamSWITCH works with a thermo optic PLC (planar lightwave circuit). Without movable parts the PLC switch offers highest security in fiber optic switching. Nanostructures in combination with interlinked splitter / coupler realizes a fully, non-blocking routing matrix.

opticamSWITCH-1
