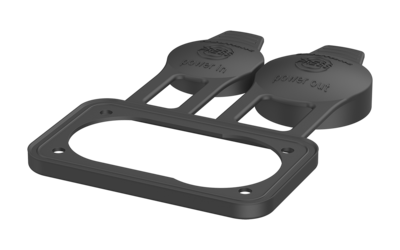

SCNAC-04

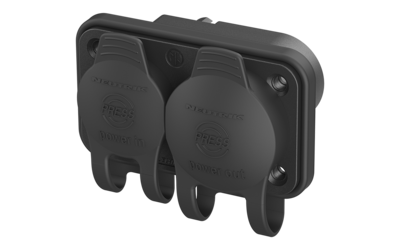

SCNAC-04 assembled

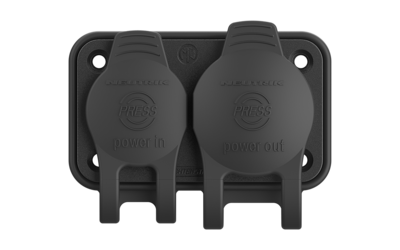

powerCON_SCNAC-04_sealing_front_RGB_WEB

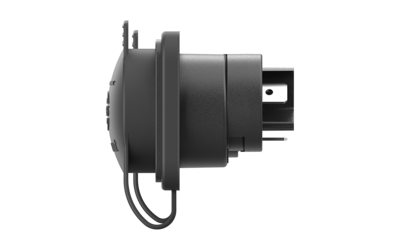

powerCON_SCNAC-04_sealing_side_RGB_WEB
1/4
neutrik-jp / 製品情報 / powerCON® / powerCON®アクセサリー / SCNAC-04

SCNAC-04

Download Data Sheet

NEW: The rubber sealing cover SCNAC-04 with double caps (power-in / power-out) protects the powerCON TRUE1 TOP chassis connectors NAC3PX-TOP from dust and water according to protection class IP 65. User friendly and easy to assemble, its compact frame allows for high packing density.

Features & Benefits
  • IP 65 water and dust proof test passed for 15 mins with vacuum (-0.2bar) in closed condition, suitable for lighting industry
  • UV-resistant material for use in harsh outdoor environment
  • Allows high packaging density on the chassis
  • User friendly, easier to assemble
Downloads
BDA 643 V1 - Sealing Cover SCNAC-01 02 03 04
pdf - 1.75 MB
SCNAC-04
pdf - 77.29 KB
SCNAC-04
dxf - 2.11 MB

Technical Information

Product
Title SCNAC-04
Material
Material EPDM
Color Black
Marking Power in / Power out
Environmental
Flammability acc. to UL 94 HB
Protection class acc. to IEC 60529 IP 65
