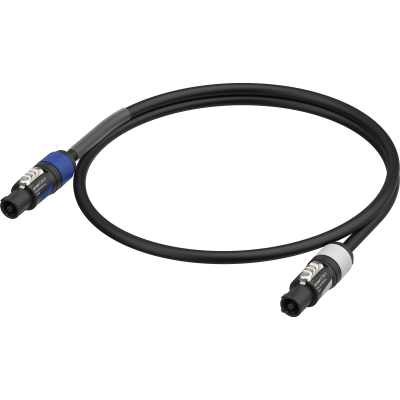

powerCON_cable-NAC3FXXA-W-L-NAC3FXXB-W-L_persp front_RGB_WEB VORSCHAUBILD - COMPLIANCE
powerCON_cable-NAC3FXXA-W-L-NAC3FXXB-W-L_persp front_RGB_WEB
VORSCHAUBILD - COMPLIANCE
1/2
neutrik-jp / 製品情報 / powerCORDS / essential POWER CORDS / powerCON FXX Interconnection cord set

powerCON FXX Interconnection cord set

Download Data Sheet

Experience full compliance, unwavering reliability, and top-notch safety, all within your budget.
Neutrik Essential series Interconnection cords sets.

Features & Benefits
  • Interconnection cord sets (local mains connectors – powerCON® FXX)
  • High quality rubber cables or PVC jacketed power cables
  • Cables with 1.5mm² and 2.5mm² conductor cross section
  • powerCON® connectors (NAC3FXXA / NAC3FXXXB), certified according to the EN60320-1
  • Ruggedized powerCON® connectors with Circuit Breaking Capacity (CBC)
  • IP20
  • Interconnection cord sets compliant to the IEC60799
  • Attractive price / value ratio

Downloads
Drawing NKPH A4A3
pdf - 733.97 KB
Drawing NKPH A4A3
dxf - 4.51 MB
Pruduct Folder Essential Power Cords FXX powerCON
pdf - 4.11 MB
BDA 703 V1 - Neutrik Manual EN - Neutrik powerCON FXX CORDS - 202401
pdf - 351.41 KB
EU Declaration of Conformity (PGD)
pdf - 370.15 KB
Product safety

Electrical cables and connectors can pose risk to life and to the appliances. To guarantee the necessary level of protection. The requirements of the low voltage directive (LVD) must be met. The LVD requirements for the connector and cables are described in the EN 60320 and EN 60799 respectively.  Compliance with these norms must be confirmed by CE declaration.

Essential series power cords

Neutrik Essential series power cords stand for full standard-compliance, unwavering reliability, and top-notch safety.

COMPLIANCE MATTERS. The new NEUTRIK powerCON blue / grey XX series connectors proudly carry the IEC-EN 60320-1 certification, complying with all required norms and standards. You can trust that your equipment is in good hands with NEUTRIK.
Full conformity of the power cord to the EU standards is confirmed by the CE declaration acc. to EN60799. The product CE declaration can be found in the Download area below.

SAFETY FIRST. At NEUTRIK, we prioritize your safety above all else. Our cables are rigorously tested and certified to ensure they meet the highest safety standards in the industry.

EXPERIENCE RELIABILITY. These cords guarantee the top-tier reliability. Embrace confidence with our ruggedized powerCON blue/grey XX connectors paired with high-quality cables.

EUROPEAN CRAFTSMANSHIP. Our cables are proudly produced in Europe, adhering to the highest manufacturing standards. European production guarantees precision, quality, and reliability that you can count on.

BEST PRICE. We prioritize high quality, unmatched safety standards, and cost efficiency! With our in-house connectors manufacturing and state-of-the-art, costeffective power cord production site, we bring you affordable prices that redefine value for money.

Article Variations
Article nameDetailsOrder code
NKPH01-A4A3-M0100Cable: 1m H07RN-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036398
NKPH01-A4A3-M0150Cable: 1.5m H07RN-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036399
NKPH01-A4A3-M0200Cable: 2m H07RN-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036400
NKPH01-A4A3-M0300Cable: 3m H07RN-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036401
NKPH01-A4A3-M0500Cable: 5m H07RN-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036402
NKPH01-A4A3-M1000Cable: 10m H07RN-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036403
NKPH02-A4A3-M0100Cable: 1m H07RN-F3G2.5 (3x2.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036404
NKPH02-A4A3-M0150Cable: 1.5m H07RN-F3G2.5 (3x2.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036405
NKPH02-A4A3-M0200Cable: 2m H07RN-F3G2.5 (3x2.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036406
NKPH02-A4A3-M0300Cable: 3m H07RN-F3G2.5 (3x2.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036407
NKPH02-A4A3-M0500Cable: 5m H07RN-F3G2.5 (3x2.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036408
NKPH02-A4A3-M1000Cable: 10m H07RN-F3G2.5 (3x2.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036409
NKPH11-A4A3-M0100Cable: 1m H05VV-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036414
NKPH11-A4A3-M0150Cable: 1.5m H05VV-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036415
NKPH11-A4A3-M0200Cable: 2m H05VV-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036416
NKPH11-A4A3-M0300Cable: 3m H05VV-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036417
NKPH11-A4A3-M0500Cable: 5m H05VV-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036418
NKPH11-A4A3-M1000Cable: 10m H05VV-F3G1.5 (3x1.5mm²); Connectors: powerCON FXXA / powerCON FXXB IP201036419





INTERCONNECTION CORD SET, RUBBER CABLE (NKPH01/02-A4A3)

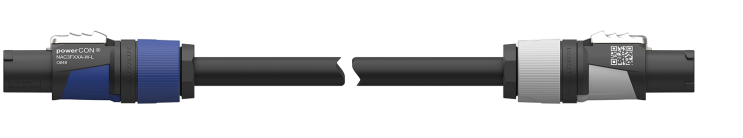

2.0 powerCON_NAC3FXXA-W-L-NAC3FXXB-W-L-cable cut_montage side_RGB_WEB

Partnumber Breakdown

NKPHx-A2A1 - Detail

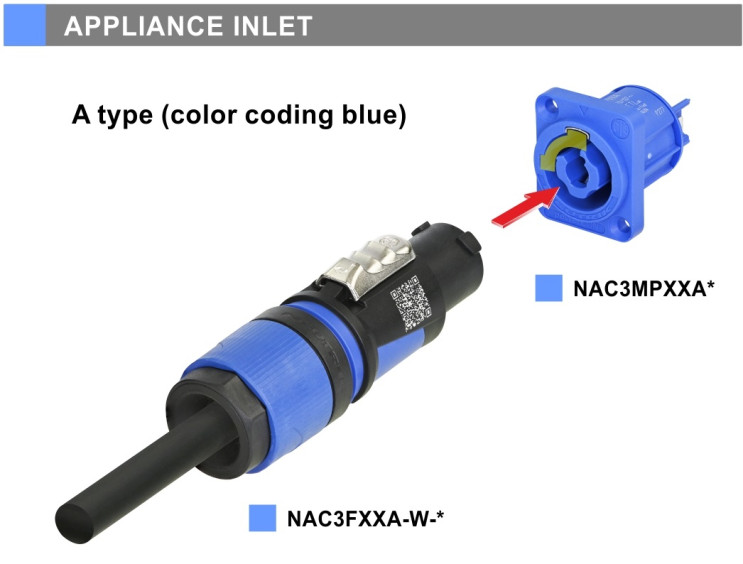

Mating scenario

powerCON Blau-Grau Power IN-OUT
