opticalCON QUAD LITE
4 channel fiber system, improved bending performance due to new tactical fiber design, black matt outer jacket, available in multi- and single-mode (PC or APC).
Besides extreme applications there is also a demand for quality fiber connections for semi-rugged applications as e.g. patching, or permanent installations. Such applications require a focus on costs and a sealing shutter is not required. The opticalCON QUAD LITE offers high performance and a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON QUAD chassis connector.
- Ruggedized 4 channel fiber optic connection system
- Cost optimized fiber connection for semi and permanent installation
- Designed for point-to-point connections
- Waterproof acc. to IP65 safety standard in mated condition
- Lightweight plastic housing
- Reliable Push-Pull locking mechanism
- Easy to clean, no special tools required
- Compatible with standard opticalCON NO4FDW-A chassis
- Custom color coding possible
- Tactical patch cable

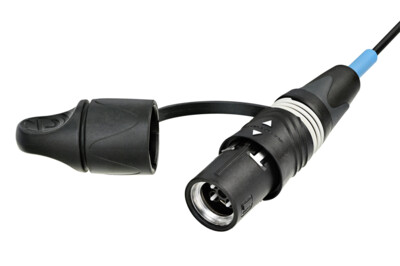

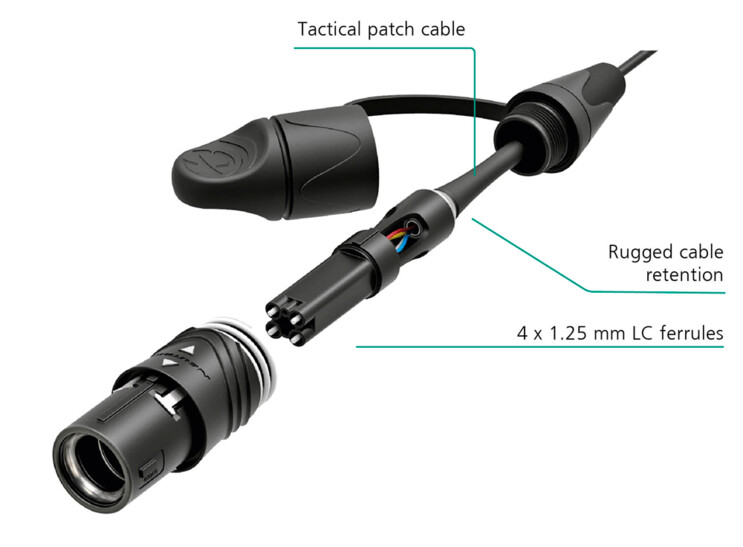

The opticalCON QUAD LITE cable connector accommodates a standard optical 1.25 mm ferrule in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and comes with an airspool packaging.
Technical Information
| Product | |
|---|---|
| Title | opticalCON QUAD LITE |
| Connection Type | opticalCON |
| Gender | male |
| Mechanical | |
|---|---|
| Cable retention | > 250 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 2500 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Bushing | Polyamide (PA 6) & Thermoplastic elastomer (TPU) |
| Insert | PBT |
| Shell | PBT |
| Strain relief | CuZn36 Pb3 (Brass) |
| Dust protection cap | Rubber (EPDM) |
| Environmental | |
|---|---|
| Temperature range | -40 °C to +70 °C |
| Optical wiring | ISO / IEC 11801 |
| Protection class | in mated condition IP65 |
| Optical | |
|---|---|
| Insertion loss | < 0.45 dB / connection |
| Optical connector | 1.25 mm ceramic ferrule (PC and APC) |
| Optical return loss | > 50 dB (PC) > 60 dB (APC) |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| Core diameter | Single mode 9 µm, Multimode 50 µm |
| Cladding diameter | 125 µm PVC |
| minimal bending radius | 3.5 cm |
| Number of fibers | 4 |
| Cable retention | Aramid yarn |
| Weigth | 14 kg/km |
| Overal diameter | 3.5 mm |

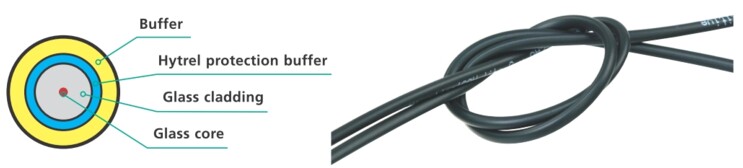

Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables contain a unique fiber design including a protection layer which allows bending with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.
