opticalCON MTP® 24 LITE
24 channel MTP® based fiber system, improved bending performance due to new tactical fiber design, black matt outer jacket, available in multi- and single-mode (PC or APC).
Besides extreme applications there is also a demand for quality fiber connections for semi-rugged applications as e.g. patching or permanent installations. Such applications require a focus on costs and a sealing shutter is not required. The opticalCON MTP® LITE offers high performance and a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON MTP® chassis connector.
- 24-channel MTP® based fiber optic connection system
- Waterproof acc. to IP65 safety standard in mated condition
- Recommended for multi-signal transmission
- Push-pull locking mechanism
- Custom color coding
- Rugged housing
- Rubber protected cap
- Compatible with standard opticalCON ADVANCED NO24FDW-A chassis

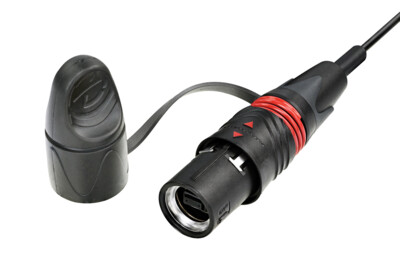

The opticalCON MTP® LITE cable connector accommodates USCONEC Elite female ferrules in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and comes with an airspool packaging.
Technical Information
| Product | |
|---|---|
| Title | opticalCON MTP® 24 LITE |
| Connection Type | opticalCON |
| Gender | male |
| Mechanical | |
|---|---|
| Cable retention | > 250 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 1'500 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Insert | PBT |
| Shell | PBT |
| Environmental | |
|---|---|
| Temperature range | -40 °C to +70 °C |
| Optical wiring | ISO / IEC 11801 |
| Protection class | in mated condition IP65 |
| Optical | |
|---|---|
| Insertion loss | < 0.45 dB |
| Optical return loss | > 50 dB (PC) > 60 dB (APC) |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| Core diameter | Single Mode 9 µm, Multimode 50 µm |
| Cladding diameter | 125 µm PVC |
| minimal bending radius | 3.5 cm |
| Cable retention | Aramid yarn |
| Weigth | 12.6 kg/km |
| Overall diameter | 3.5 mm |
Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables contain a unique fiber design including a protection layer which allows bending with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.
