NP3TT-AU-R
neutrik-jp / 製品情報 / NP3TT-AU-R

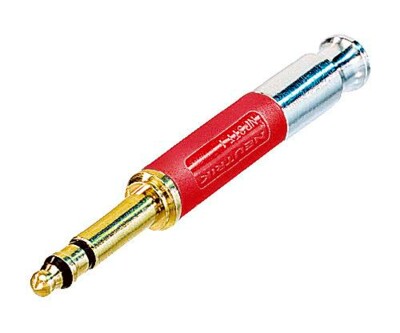

NP3TT-AU-R

Download Data Sheet

4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T + R, crimp termination for S, HEX crimp cable strain relief, red plastic housing, gold contact. Ideal use with TT patch panels.

Features & Benefits
  • Designed for pro audio applications
  • Gold contacts guarantee best conductivity
  • Robust egonomic design - long-lasting and depenable
  • Standard HEX crimp cable clamp for shield termination and cable retention
  • Colored sleeves available for coding and marking
Downloads
np3tt-au-r-1
pdf - 69.1 KB
np3tt-au-r-2
dxf - 16.6 KB
0-173---bantam-type-miniature-plug-np3tt-1
pdf - 264.1 KB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB

Technical Information

Product
Title NP3TT-AU-R
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 4.8 mm
Crimp size 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
Lifetime > 1000 mating cycles
Wiresize 0,25 mm²
Wiresize 24 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 0.2 µm Au TRIBOR®
Contacts Bronze (CuSn6) (Tip)
Insert Polyamide (PA 6.6 30 % GR)
Shell Brass (CuZn39Pb3)
Shell plating 2 µm Ni (Su) + PA 6 30% GR (red)
Environmental
Standard compliance MIL-P-642/13
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
Accessories
audio
BSTT-*

Colored sleeves for NP3TT Series

audio
HX-TT-1

Assembly tool for NP3TT-1* and NP3TT-AU-*
