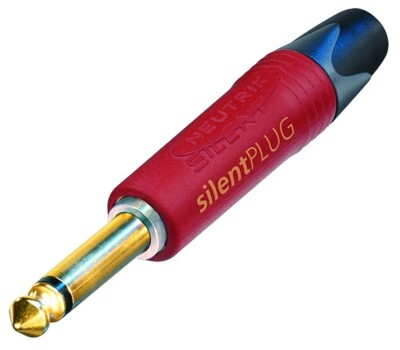

従来品 ラバーボディ(赤)
ギターやベースのプラグを抜き差しする際のノイズを内部のスイッチングシステムにより防止する製品です。
※強い磁界を発する機材(アンプ等)でのご使用はお控え下さい。
Product | |
Title | NP2XX-SILENT |
Connection type | plug |
Gender | male |
Electrical | |
Contact resistance | depends on mating connector mΩ |
Dielectric strength | 0.2 kVdc |
Insulation resistance | > 2 GΩ (initial) |
Rated current per contact | depends on mating connector A |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | 4 - 7 mm |
Lifetime | > 1000 mating cycles |
Wiresize (mm / AWG) | 1 mm² / 18 AWG |
Wiring | Solder contacts |
Material | |
Bushing | PP + PA6 |
Contact plating | 0.2 μm Au |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Shell | TPE + PA6 |
Strain relief | Polyacetal (POM) |
Environmental | |
Standard compliance | IEC 60603-11 / EIA RS-453 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -20 °C to +65 °C |
