NL4MPXX-UC
neutrik-jp / 製品情報 / NL4MPXX-UC

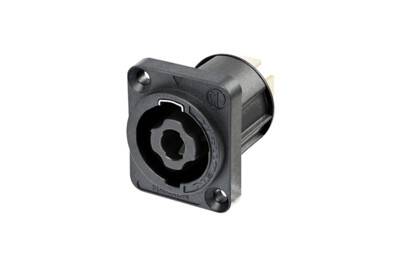

NL4MPXX-UC

Download Data Sheet

4 pole male chassis connector for 30 A rms continuous. Black D-size flange, countersunk thru holes, 1/4" flat tabs (termination e.g. with Faston tab Tyco part # 41829

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits
  • IEC 61984 certified, IEC 6236/-1 compliant
  • Glass reinforced V-0 materials – extremely robust and durable
  • Precise keyway for secure mating with metal insert in locking area
Downloads
20003482_-_NL4MPXX-UC
pdf - 195.66 KB
20003482_-_NL4MPXX-UC
dxf - 889.83 KB
30008878_-_NL4MPXX-UC
stp - 6.8 MB
CB Certificate SE-103879
pdf - 68.98 KB
Certificate_ENEC_40052110 (2024-06-11)
pdf - 307.3 KB
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB
BDA 591 V1 - Assembly recommendation of speakON chassis connector
pdf - 318.08 KB
Links
Intertek Certificate UL-1977 REC Intertek Certificate CAN/CSA-C22.2 No. 182.3 REC

Technical Information

Product
Title NL4MPXX-UC
Gender male
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance >0.1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Termination ¼" flat tabs
Locking device Rear (e.g. MFD) / front mounting
Chassis shape D
Layout standard hole position, thru holes
Material
Contact plating Ag
Contacts Copper Alloy
Shell Polyamide (PA 66)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Accessories
CAS-DUMMY

ダミープラグセット 専用ケース付き

MFD

M3ネジ穴対応プレート ※DLXシリーズサイズ専用

audio
NDL

ダミープラグ speakON(スピコン)4ピン・powerCON(パワコン)20A レセプタクル用

audio
SCDR

ソフトプラスチック背面カバー DLXシリーズサイズレセプタクル用

audio
SCDX

ケースタイプダストカバー  DLXシリーズ用

audio
SCL

ダストカバー speakON(スピコン)・powerCON(パワコン) レセプタクル用

SCCD-W

バネ付きレセプタクルカバー DLXシリーズ取付サイズ用

SCD-W

ユニバーサルダストカバー  DLXシリーズ用
