NL4MPXX-3

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

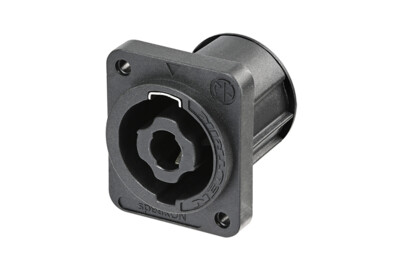

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

IEC 61984 certified > IEC 62368-1 compliant
Glass reinforced V-0 materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area

Downloads

BDA 594 V1 - speakON NL4MPXX & NL4MPXX-3

pdf - 253.84 KB

BDA 591 V1 - Assembly recommendation of speakON chassis connector

CB_Cert_SE-100963A1M1

pdf - 84.88 KB

Certificate_ENEC_40052110 (2024-06-11)

pdf - 307.3 KB

Certificate ETL_104216254ATL-001A_240425_ATM (2024-04-25)

pdf - 117.47 KB

03 Section speakON PG EN 202202-V23

pdf - 5.55 MB

Technical Information

Product
Title	NL4MPXX-3
Gender	male

Electrical
Contact resistance	≤ 2 mΩ
Dielectric strength	2.8 kVac
Insulation resistance	>0.1 GΩ (after dampheat)
Rated current per contact	25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an AC mains or power supply connector!

Mechanical
Lifetime	> 5000 mating cycles
Termination	3/16" flat tabs (e.g. NLFASTON)
Locking device	Quick Lock
Mounting direction	Rear mounting
Chassis shape	D
Layout	Standard hole position, self tapping screw holes (A-Screw)

Material
Contact plating	Ag
Locking element	Stainless Steel
Shell	Polyamide (PA 6.6)
Contacts	Copper Alloy

Environmental
Flammability	UL94 V-0
Temperature range	-30 °C to +80 °C
