NL4MPRXX

NL4MPRXX

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

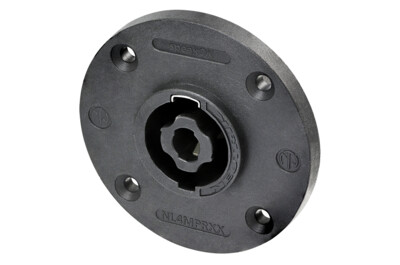

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Download Data Sheet
Selection of topics
製品の特長 ダウンロード 技術情報 アクセサリー
Download Data Sheet

Features & Benefits

  • IEC 61984 certified > IEC 62368-1 compliant
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications

Downloads

  • Assembly Instruction - speakON NL4MPRXX
  • Assembly recommendation of speakON chassis connector
  • Drawing NL4MPRXX
  • Drawing NL4MPRXX
  • 3D File NL4MPRXX
  • IEC 61984 CB Certificate
  • Product Guide - Section Loudspeaker Connectors

Links

  • Intertek Certificate UL-1977 REC
  • Intertek Certificate CAN/CSA-C22.2 No. 182.3 REC

Technical Information

Product
Title NL4MPRXX
Gender male
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance >0.1 GΩ (after dampheat)
Rated current per contact 25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Termination 3/16" flat tabs (e.g. NLFASTON)
Locking device Quick Lock
Chassis shape round G-size flange
Layout four thru holes
Material
Contact plating Ag
Locking element Stainless Steel
Shell Polyamide (PA 6.6)
Contacts Copper Alloy
Environmental
Flammability V-0
Temperature range -30 °C to +80 °C
