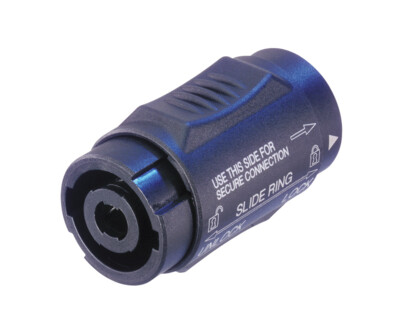

NL4MMX
speakON（スピコン）シリーズは弊社独自の発想により開発され、プロ用音響機器のスピーカー接続用としてすでに世界標準となっているコネクターです。
高電流、高耐久性を持ち、さらには独自のロック機構により接続不良を防ぎ、音の現場で確実、忠実な信号伝達を行います。
Features & Benefits
スピーカー用ケーブル中継用アダプター
・4コンタクト（スピーカー2回線）
Downloads
Technical Information
| Product | |
|---|---|
| Title | NL4MMX |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 15 A rms continuous |
| Rated current per contact | 30 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V (Insulation) |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Locking device | Quick Lock |
| Material | |
|---|---|
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6 30 % GR) |
| Shell | Polyamide (PA 6 30 % GR) |
| Environmental | |
|---|---|
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
