NL2MPXX

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

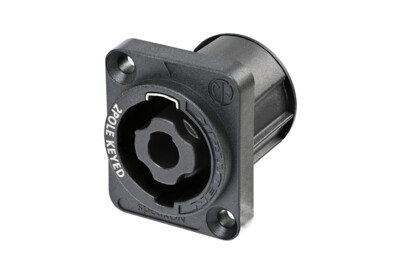

2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

IEC 61984 certified > IEC 62368-1 compliant
Glass reinforced V-0 materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area

Downloads

BDA 589 V1 - speakON NL2MPXX

pdf - 204.11 KB

BDA 591 V1 - Assembly recommendation of speakON chassis connector

CB_Cert_SE-100963A1M1

pdf - 84.88 KB

Certificate_ENEC_40052110 (2024-06-11)

pdf - 307.3 KB

Certificate ETL_104216254ATL-001A_240425_ATM (2024-04-25)

pdf - 117.47 KB

03 Section speakON PG EN 202202-V23

pdf - 5.55 MB

Technical Information

Product
Title	NL2MPXX
Gender	male

Electrical
Contact resistance	≤ 2 mΩ
Dielectric strength	2.8 kVac
Insulation resistance	>0.1 GΩ (after dampheat)
Rated current per contact	24 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an AC mains or power supply connector!
