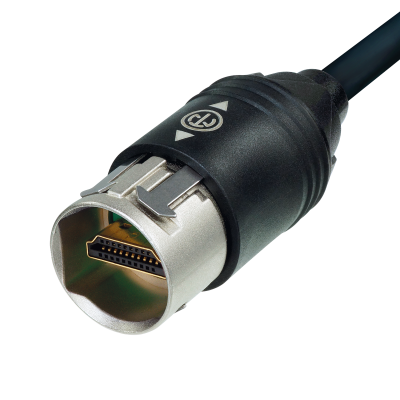

NKHDMI-*
The HDMI patch cables with overmolded flex relief and rugged metal cable carrier fit and lock with NAHDMI-W-*.
The cables are available in 0.6 m, 1 m, 3 m, 5 m, 7 m, 8 m and 10 m cable length.
Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.
Features & Benefits
- Data rate up to 18 GBit/s
- ケーブル長：1m、3m、5m、10mの4タイプ
- HDMI2.0対応（10mのNKHDMI-10のみHDMI1.4）
- 対応するレセプタクルとの嵌合時には保護等級IP65を実現
- コネクター部分のボディは取り外し可能
- ボディを取り外すと弊社製レセプタクル以外のメスコネクターと接続可能となります）
- 受注生産品
Technical Information
| Product | |
|---|---|
| Title | NKHDMI-* |
| Gender | male |
| Mechanical | |
|---|---|
| Wiresize | |
| Minimum bending radius allowed | 40 mm |
| Lifetime | > 1000 mating cycles |
| Locking device | Push-Pull |
| Overall cable diameter | 6,5 mm |
| Material | |
|---|---|
| Contact plating | Au |
| Contacts | Bronze (CuSn) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Cable jacket material | PVC |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Standard compliance | HDMI 2.0 specifications for length up to 3 m incl. HDMI 1.4 specifications for length > 3 m |
| Temperature range | -25 °C to +85 °C |
Article Variants
Article name | Length | Order code |
| NKHDMI-0.6 | 0.6 m HDMI Cable with 2x Male HDMI Connector | NKHDMI-0.6 |
| NKHDMI-1 | 1 m HDMI Cable with 2x Male HDMI Connector | NKHDMI-1 |
| NKHDMI-3 | 3 m HDMI Cable with 2x Male HDMI Connector | NKHDMI-3 |
| NKHDMI-5 | 5 m HDMI Cable with 2x Male HDMI Connector | NKHDMI-5 |
| NKHDMI-7 | 7 m HDMI Cable with 2x Male HDMI Connector | NKHDMI-7 |
| NKHDMI-8 | 8 m HDMI Cable with 2x Male HDMI Connector | NKHDMI-8 |
| NKHDMI-10 | 10 m HDMI Cable with 2x Male HDMI Connector | NKHDMI-10 |
