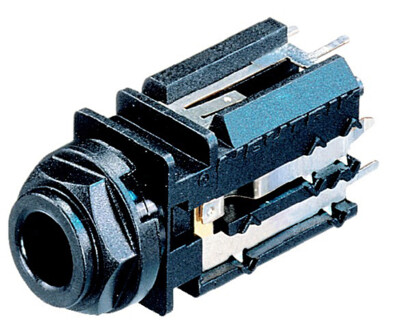

NJ2FD-V
1/4'' バーチカルジャックは、垂直基板取り付けタイプのジャックです。
Features & Benefits
バーチカルフォーンジャク
・2極、スイッチ無し（T/S） モノラル仕様
・垂直基板取り付けタイプ
・コンタクト：金メッキ
・ハウジング：プラスチック
・適合ダミープラグ：NDJ
Downloads
Technical Information
| Product | |
|---|---|
| Title | NJ2FD-V |
| Connection Type | Jack |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | < 10 mΩ (initial) |
| Dielectric strength | 1 kVdc |
| Insulation resistance | ≥ 1 GΩ @ 500 V dc |
| Rated current per contact | 3 A |
| Mechanical | |
|---|---|
| Insertion force | < 20 N |
| Withdrawal force | < 8 N |
| Lifetime | > 10000 mating cycles |
| Panel thickness | 1.2 - 1.5 mm (0.047' - 0.06') |
| Wiresize | |
| Wiring | vertical PCB mount |
| Locking device | Retention spring |
| Mounting direction | Rear mounting |
| Chassis shape | 12 mm |
| Cap opening torque | 25 N cm / 9.84 N in |
| Material | |
|---|---|
| Cap / Nut / Washer | Polyacetal (POM) |
| Contact plating | 0.2 µm Au |
| Contacts | Bronze (CuSn6) |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Environmental | |
|---|---|
| Standard compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 °C to +70 °C |
