NE8FDP-SE

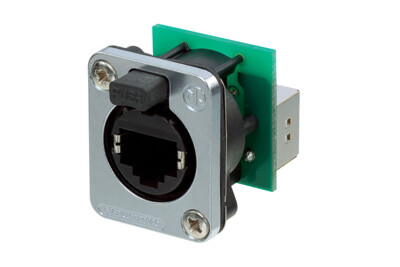

etherCON（イーサコン）Dシリーズは、弊社製CAT5シリーズケーブルコネクター（NE8MC*）に対応したDLXシリーズ取り付けサイズのRJ45レセプタクルコネクターです。
ネットワーク時代の高信頼性データ転送アプリケーションに最適です。
XLRタイプコネクターと同様にラッチロック機構を持ち、ヘビーデューティーな用途に対応します。
Features & Benefits
Downloads
Technical Information
| Product | |
|---|---|
| Title | NE8FDP-SE |
| Type | Chassis |
| Connection Type | etherCON |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | < 50 mΩ |
| Dielectric strength | 1 kVdc |
| Frequencyrange | 1 - 100 MHz |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Rated voltage | ≤ 57 V |
| Transmission performance | CAT5e acc. to TIA/EIA 568A/B component specifications CAT5e acc. to ISO/IEC 11801 component specifications |
| Power over Ethernet | PoE type 4 class 8 (100W) acc. IEEE 802.3bt |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | 1000 mating cycles |
| Panel thickness | 2 mm - 4 mm , 0.08" - 0.16" |
| Wiresize | |
| Wiring | Feedthrough |
| Locking device | Latch lock |
| Chassis shape | D |
| Material | |
|---|---|
| Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Chromium |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Standard compliance | TIA/EIA 586B, IEC11801 |
| Temperature range | -30 °C to +80 °C |
| Standard compliance | ISO/IEC 11801-1 Ed. 1.0 (2017-11) IEC 60603-7-3 Ed.2.0 (2010-04) IEC 60512-99-002 Ed.2.0 (2022-01) IEC 60512-9-3 (2011-06) |
