etherCON(イーサコン)Dシリーズは、弊社製CAT5シリーズケーブルコネクター(NE8MC*)に対応したDLXシリーズ取り付けサイズのRJ45レセプタクルコネクターです。
ネットワーク時代の高信頼性データ転送アプリケーションに最適です。
XLRタイプコネクターと同様にラッチロック機構を持ち、ヘビーデューティーな用途に対応します。

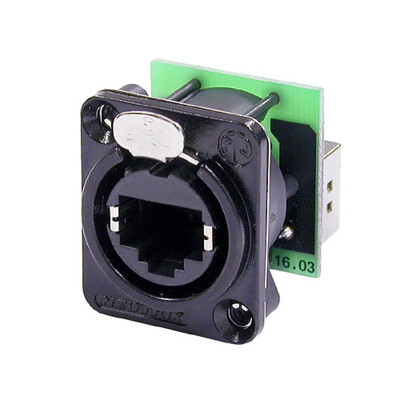

RJ45コネクター イーサコンレセプタクル Dシリーズ ジャック接続型 ブラック
・カテゴリー5e対応
・弊社製CAT5シリーズコネクター(NE8MC*)、RJ45に準拠したコネクターに対応
・パネル取り付け:DLXフランジサイズ
・ハウジング:黒クロームメッキ
・取り付けネジ付属
・適合ダストカバー:SCDX
Product | |
Title | NE8FDP-B |
Gender | female |
Electrical | |
Contact resistance | < 50 mΩ |
Dielectric strength | 1 kVdc |
Frequencyrange | 1 - 100 MHz |
Insulation resistance | > 0.5 GΩ |
Rated current per contact | 1,5 A |
Rated voltage | ≤ 57 V |
Transmission performance | CAT5e acc. to TIA/EIA 568A/B component specifications CAT5e acc. to ISO/IEC 11801 component specifications |
Power over Ethernet | PoE type 4 class 8 (100W) acc. IEEE 802.3bt |
Mechanical | |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Panel thickness | max. 4 mm 0.16' |
Wiresize | |
Wiring | Feedthrough |
Locking device | Latch lock |
Chassis shape | D |
Material | |
Contact plating | 0.2 µm Au over Ni plating |
Contacts | Bronze (CuSn8) |
Insert | PBTP 15 % GR |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Black KTL |
Locking element plating | Nickel |
Environmental | |
Flammability | UL 94 V-0 |
Temperature range | -30 °C to +80 °C |
Standard compliance | ISO/IEC 11801-1 Ed. 1.0 (2017-11) IEC 60603-7-3 Ed.2.0 (2010-04) IEC 60512-99-002 Ed.2.0 (2022-01) IEC 60512-9-3 (2011-06) |
