NE8FBH-M-GB NE8FBH-M-GB_rear_View

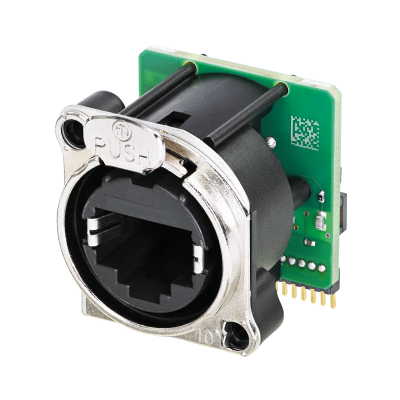

NE8FBH-M-GB

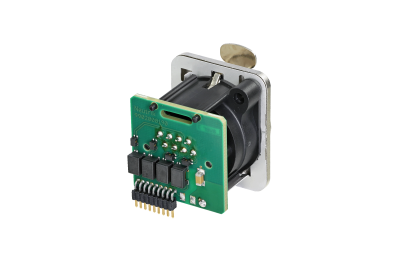

NE8FBH-M-GB_rear_View
1/2
neutrik-jp / 製品情報 / etherCON® RJ45 Connectors / etherCON® Chassis Connectors / Bシリーズ / NE8FBH-M-Gb

NE8FBH-M-Gb

Download Data Sheet

etherCON Magnetics are horizontal PCB etherCON chassis connectors with integrated magnetics providing galvanic isolation and overvoltage protection.

These features save PCB space within the device design and provide improved frequency response when compared to standard designs.

Attention: this product is strictly not intended for use in PoE systems. Use in PoE systems may damage the connector.

Features & Benefits
  • Integrated magnetics circuitry within the chassis connector
  • Space-saving design, as it removes the need for HF part otherwise required on the customer motherboard.
  • Components used: transformers, ferrite core and Bob Smith termination for the automatic termination in case of no cable connection
  • Saving costs on PCB (~20 parts)
  • Support voltage mode applications
  • In case of overvoltage harm, the connector can be exchanged, and the main board is still safe.
  • Cat 5e (100Mbits and 1Gbits) transmission performance according to IEEE 802.3, 802.3b, and 802.3ab standards
  • Lowest crosstalk attenuation with the use of machined-designed transformer
  • Overvoltage protection up to 2 kV.
  • Accepts etherCON NE8MC*, NE8MX* or any standard RJ45 plug
  • Overvoltage protection >2 kV for 1Gb/s available via optional customer-installed capacitor
  • Ground-panel connection


Note: not compatible with etherCON Cat 6 NE8MC6-MO

Downloads
20003659_-_NE8FBH-M-GB
pdf - 145.07 KB
ne8fbh-m-gb
stp - 2.91 MB
BDA 648 V1 - etherCON Magnetics A & B-Serie
pdf - 2.96 MB

Technical Information

Product
Title NE8FBH-M-Gb
Gender Female
Electrical
Dieletric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Number of electronical contacts 9
Rated current per contact 1.5 A
Rated voltage < 50 V
Transmission performance CAT5e, acc. TIA/EIA 586C.2, IEC11801
Frequency range 1-100 MHz
PoE This product is strictly not intended for use in PoE systems.
Mechanical
Insertion force ≤ 20 N
Withdraw force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness Maximum 4 mm (0.16’)
Wiring Horizontal PCB mount
Locking device Latch lock
Chassis shape B
Material
Contact plating Gold (Au)
Contacts Bronze
Insert PBTP
Shell Zinc diecast
Shell Plating Nickel (Ni)
Locking element plating Nickel
Environmental
Flammability according to UL 94 V-0
Protection class according to IEC 60529 IP 40
Pollution degree according to IEC 60664-1 Pollution Degree 2
Solderability Complies with IEC 60068-2-20
Explosion environment Not intended to be used within explosive environments
Temperature range -30 °C to +80 °C
Maximum Operating Temperature +80 °C
Accessories
audio
DSS-*

カラー銘板   レセプタクル用

E-SCREW1-12NI

Nickel self-tapping PLASTITE® screw 2.9 x 1.06 tri-rondular configuration, 12 mm long, countersunk

E-SCREW1-12 B

Black self-tapping PLASTITE®* screw 2.9x1.06 tri-rondular configurations, 12 mm long, countersunk *PLASTITE® is a registered trademark of SFS Unimarket

SCDP-FX-*

省スペースになったレセプタクル識別用ガスケット 6色

audio
SCDX

ケースタイプダストカバー  DLXシリーズ用

audio
SE8FD

イーサコンDシリーズ向けシーリングキット

SE8FD-TOP

Assembly kit to convert D-series etherCON connectors into TOP versions.

SCCD-W

バネ付きレセプタクルカバー DLXシリーズ取付サイズ用
