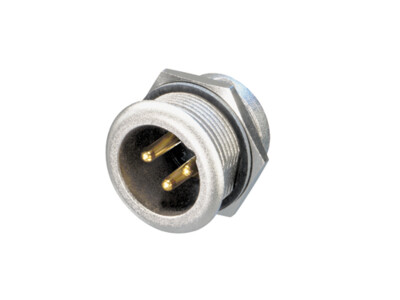

NC3MPR-HD
MPR-HD（Heavy duty）シリーズはケーブルコネクターのX-HDシリーズと嵌合させることにより保護等級IP65を実現するレセプタクルコネクターです。
堅剛なその作りは屋外での使用や工業用途に最適です。
Features & Benefits
XLRタイプオス型3ピンレセプタクルコネクター MPR-HDシリーズ
・保護等級IP65： NC3FX1-TOPとの嵌合時に発揮
・保護等級IP67： NC3FXX-HD-D、NC3FXX-HD-B-Dとの嵌合時に発揮
・コンタクト：金メッキ
・ハウジング：ニッケルメッキ
・IEC 61984:2008準拠
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC3MPR-HD |
| Connection Type | XLR |
| Gender | male |
| Remark | Male connectors are not intended to be used as Input Connectors. |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | 50 Vac |
| Over voltage category | I |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1.5 – 2.5 mm² |
| Mechanical endurance | COC |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Chassis shape | P |
| Material | |
|---|---|
| Contact plating | 0.2 µm Au over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Gasket | Tesnit® |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class according to IEC 60529 | IP 65 - mated with HD cable connector NC3FX-HD* |
| IP67 - mated with HD cable connector NC3FXX-HD* | |
| Pollution degree according to IEC 60664-1 | 2 |
| Solderability | Complies with IEC 60068-2-20 |
| Temperature range | -30 °C to +80 °C |
| Maximum operating temperature | +40 °C |
