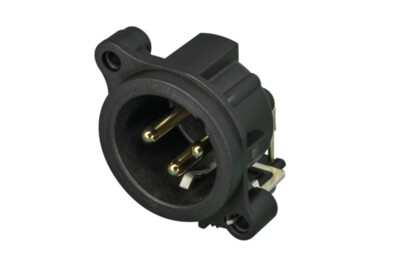

NC3MAH-S
3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount
The opening (switching) contacts are activated by the mating connector offering the possibility to indicate and monitor the mated connection.
The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). Hard gold plated contacts with polished contact areas. UL recognized component.
Features & Benefits
・コンタクト：金メッキ
・ラッチロック：有り（納品時非装着）
・シャーシ、シェルグランド端子：接続無し
・耐燃性：UL94 V-0
・取り付け推奨ネジ：A-SCREW-1-8（φ2.9×8mmタップネジ）
・取り付け可能間隔：23.0mm
Technical Information
| Product | |
|---|---|
| Title | NC3MAH-S |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V |
| Grounding Options | Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Chassis shape | A |
| Mounting | A-Screw |
| Material | |
|---|---|
| Contacts | Brass (CuZn39Pb3) |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Environmental | |
|---|---|
| Approvals | UL |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
