NC3FXX-14-B

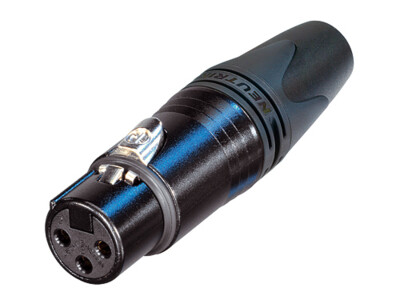

3 pole female cable connector for 8 mm - 10 mm cable O.D. with black metal housing and gold contacts
Special version of the XLR cable connector XX Series for large cable diameters. Incorporating all features of the XX Series.
Features & Benefits
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC3FXX-14-B |
| Gender | female |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 8 mm - 10 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm² |
| Wiresize | max. 14 AWG |
| Material | |
|---|---|
| Locking element plating | Nickel |
| Environmental | |
|---|---|
| Standard compliance | IEC 61076-2-103 |
| Temperature range | -30 °C to +80 °C |
