フルメタルハウジングを使用した高信頼性レセプタクルコネクター「DLシリーズ」がさらに性能を高め「DLXシリーズ」へと生まれ変わりました。
より確かな接地を実現するための「2点接地仕様」を採用。また新設計のハウジングは特にRFノイズへの対策に向けられ、総合的に対ノイズ性能を飛躍的に改善。
次世代の幅広いアプリケーションに対応します。

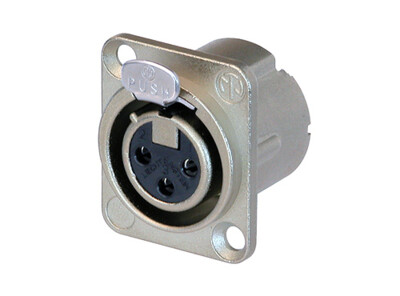

XLRタイプメス型3ピンレセプタクルコネクター DLXシリーズ シルバー
・コンタクト:銀メッキ(7点接触により安定した接続と接触抵抗の低減を実現)
・ハウジング:ニッケルメッキ
Product | |
Title | NC3FD-LX |
Connection Type | XLR |
Gender | female |
Electrical | |
Capacitance between contacts | ≤ 4 pF |
Contact resistance | ≤ 5 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 16 A |
Rated voltage | < 50 V |
Mechanical | |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | max. 2.5 mm² |
Wiresize | max. 14 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Chassis shape | D |
Material | |
Contact plating | 2 µm Ag |
Contacts | Bronze (CuSn6) |
Insert | Polyamide (PA66) |
Locking element | Steel Ck67 |
Locking element plating | Nickel |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Environmental | |
Flammability | UL 94 V-0 |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
