NC10FRX-14-B

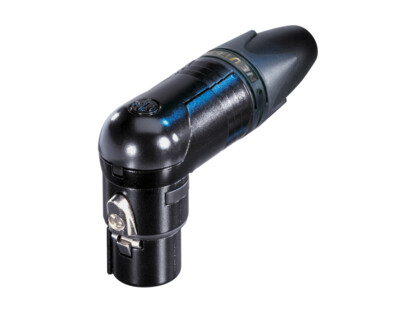

Easy to assemble 8 + 2 pole right-ange female XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief
Features & Benefits
- Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
- Superior ruggedness compared to RJ45 type connectors
- All metal housing offers best overall RF protection and electromagnetic shielding
Downloads
application-note-8-2-pole-xlr
pdf - 397.91 KB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
bda-484---10-pole-xlr-right-angle-cable-connector-nc10frx-and-nc10mrx
pdf - 2.34 MB
20006526_-_NC10FRX-14-B
dxf - 2.2 MB
20006526_-_NC10FRX-14-B
pdf - 426.42 KB
30012500_-_NC10FRX-14-B
stp - 5.74 MB
Technical Information
| Product | |
|---|---|
| Title | NC10FRX-14-B |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 10 GΩ (initial), 0.1 (after damp heat test) |
| Number of electronical contacts | 8 + 2 |
| Rated current per contact | 16 A (power pins), 3 A (data pins) |
| Cable shield - shell connection | choosable |
| Transmission performance | CAT 5e |
| Mechanical | |
|---|---|
| Cable O.D. | 8.0 - 10.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins) |
| Material | |
|---|---|
| Bushing | PA / PU |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | PA66 |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Locking element plating | Nickel |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Split sleeve | POM |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
| Manufacturing Standard | IEC 61076-2-103 |
