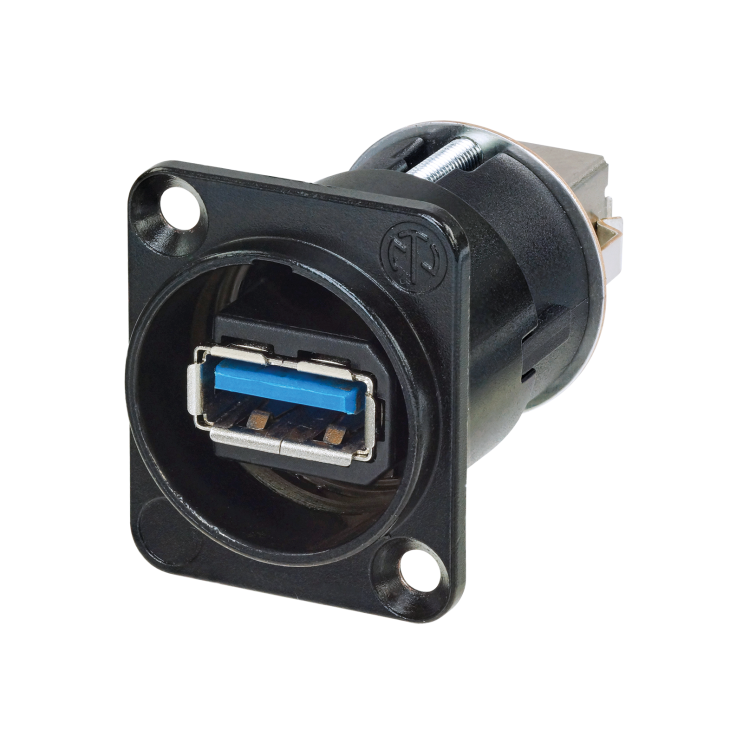

NAUSB3-B
マルチメディアコネクターはデジタルネットワークやデジタル機器の拡張に最適です。
本製品はUSB3.0に対応し、DLXシリーズ取り付けサイズに対応したレセプタクルコネクターとなっています。
USBコネクター レセプタクル ブラック
・USB3.0対応
・適合ダストカバー：SCDX、SCD-W、SCCD-W
・Aタイプ/Bタイプ リバーシブル使用可能
Cable lengths
通信品質を保つ為には適切な長さのケーブルを使用する必要があります。
使用するUSB 3.0 ケーブルのワイヤーゲージ（AWG）に応じて使用可能なケーブル長は下記の通りです。
| ワイヤーゲージ | ケーブル長 |
| AWG 22 | 1.75 m |
| AWG 24 | 1.0 m |
| AWG 26 | 0.6 m |
| AWG 28 | 0.35 m |
Technical Information
| Product | |
|---|---|
| Title | NAUSB3-B |
| Connection Type | Adapter |
| Gender | female |
| Electrical | |
|---|---|
| Reading / Writing speed | >200 MB/s |
| Mechanical | |
|---|---|
| Wiresize | |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Lifetime | > 1000 mating cycles |
| Material | |
|---|---|
| Contact plating | Au |
| Contacts | Bronze (CuSn) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Standard compliance | USB 3.0 specifications |
| Temperature range | -25 °C to +85 °C |
To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.
Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.
USB Type A in front
USB Type B in front
An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.
We recommend to use USB-IF certified cables to ensure error-free data transmission. Maximum length of USB-IF certified USB 3.0 passive cable is 2.0 meters.

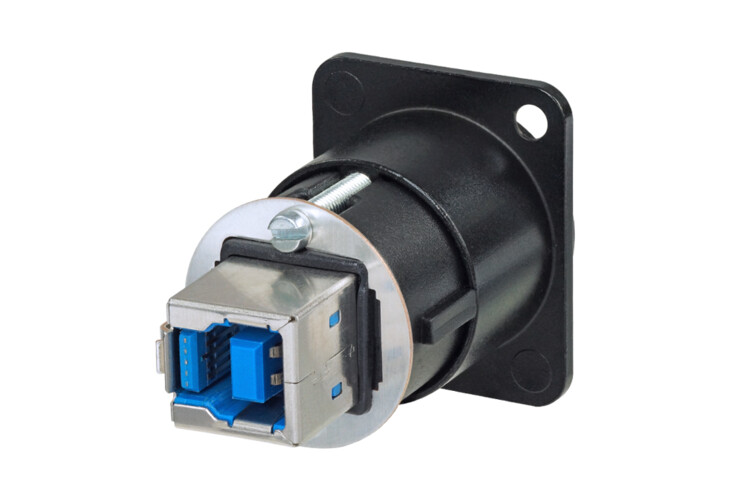

NAUSB3-B rear view
