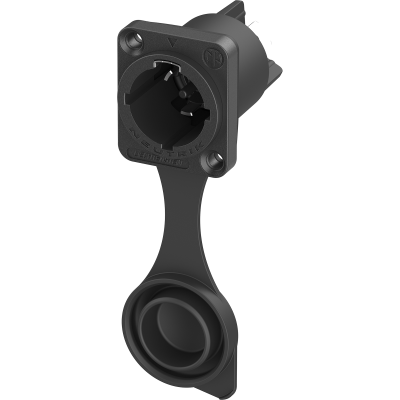

powerCON chassis_NAC3MPX-TRUE1_persp front_RGB_WEB

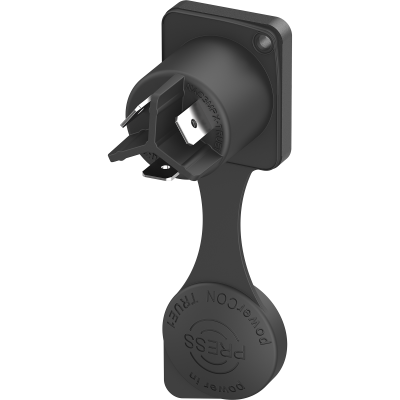

powerCON chassis_NAC3MPX-TRUE1_persp back_RGB_WEB
1/2
neutrik-jp / 製品情報 / powerCON® / パワコン® TRUE1 / パワコン TRUE1 レセプタクルコネクター / NAC3MPX-TRUE1

NAC3MPX-TRUE1

Download Data Sheet

The "powerCON TRUE1 airtight"  is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1  product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme  conditions.

The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features and Benefits
  • Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Extremely robust and reliable
  • ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
  • UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
  • UL Certified According to UL 498
  • IP65, IP66 and IP67 (mated or with closed cap)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist lock system

Downloads
3D Model NAC3MPX-TRUE1 (STP)
stp - 5.19 MB
Drawing NAC3MPX-TRUE1 (PDF)
pdf - 349.53 KB
Drawing NAC3MPX-TRUE1 (DXF)
dxf - 1.91 MB
Product Manual powerCON TRUE1 Chassis - NAC3MPX-TRUE1
pdf - 2.34 MB
NEUTRIK Broschuere powerCON TRUE1 chassis connectors
pdf - 1.87 MB
ENECVDE Certificate NAC3MPX-TRUE1 40058554 (2024-05-15)
pdf - 307.61 KB
CB Certificate NAC3MPX-TRUE1 DE1-68680
pdf - 93.42 KB
UL Certificate UL-US-2437324-1
pdf - 257.07 KB
CSA Certificate UL-CA-2428569-1
pdf - 153.42 KB
UL 498 Certificate UL-CA-20110501
pdf - 331.75 KB

Technical Information

Product
Title NAC3MPX-TRUE1
Product family powerCON® TRUE1
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 GΩ (after damp and heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe 16 A / 250 V AC according to EN IEC 60320-1
Rating America 20 A / 250 V AC according to UL 60320-1
20 A / 250 V AC according to CSA C22.2 No. 60320-1
20A/ 250 V AC according to UL 498
Mechanical
Lifetime > 5000 mating cycles
Wiresize (mm²) 2.5 mm²
Wiresize (AWG) 12 AWG
Material
Contact plating 2 μm Ag
Locking element Stainless steel
Contacts Copper Alloy
Shell Polyamide (PA 66)
Environmental
Flammability UL 94 V-0
Protection class IP 65 / 66 / 67 (mated or with closed caps)
UV resistance F1 rated material withstands UV exposure
Temperature range -30°C to +80°C according to IEC 61984
-5°C to +40°C according to IEC 60320-1
