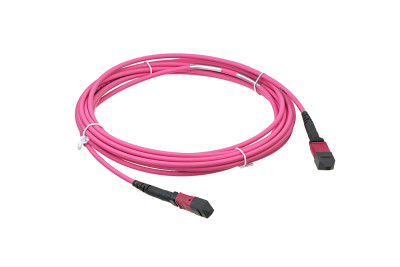

MTP® Patch Cable

Download Data Sheet

High performance MTP® patch cable to connect the rear side of the opticalCON MTP® chassis connectors. Elite®male ferrules guarantee low insertion loss and optimized optical return loss values.

Optical Con Login
ログイン Optical Con Login
Features & Benefits
  • USCONEC MTP Elite® Male connector
  • Multifiber design reduces installation cost and time
  • Small form factor
  • Unique fiber design for high cable performance
  • Individual lengths available
  • Single and multimode
  • Standard wiring method: A
  • Optional wiring method B and C available upon request
ダウンロード
Drawing MTP 12 patch cable
pdf - 58.24 KB
Drawing MTP 16 patch cable
pdf - 59.55 KB
Drawing MTP 24 patch cable
pdf - 56.92 KB
Drawing MTP 48 patch cable
pdf - 59.8 KB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V32 – 202506
pdf - 51.19 MB

Technical Information

Product
Title MTP® patch cable
Environmental
Temperature range -20 °C to +70 °C
Optical
Insertion loss Please see individual drawings (Downloads)
Optical connector MTP® Male SM [APC] to MTP® Male SM [APC]
MTP® Male MM [PC] to MTP® Male MM [PC]
Optical wiring Method A
Mobile cable
Outer diameter MTP®12: 3,0mm (approx.)
MTP®16: 3,5mm (approx.)
MTP®24: 3,8mm (approx.)
MTP®48: 4,8mm (approx.)
Jacket material LSZH/OFNP/PVC
Core diameter Multimode 50 µm
Singlemode 9 µm
Cladding diameter 125 µm
Number of fibers 12, 16, 24, 48
Accessories
NO12FDW-A - opticalCON MTP 12 ADVANCED CHASSIS CONNECTOR_topview.png
NO12FDW-A

オプティカルコンMTP® レセプタクルコネクター 12芯タイプ
audio
NO16FDW-A - opticalCON MTP 16 ADVANCED CHASSIS CONNECTOR_topview.png
NO16FDW-A

MTP® 16 chassis fitting with standard MTP® 16 (ELITE male with 20 N springforce) breakout cable

 NO24FDW-A - opticalCON MTP 24 ADVANCED CHASSIS CONNECTOR_topview.png
NO24FDW-A

opticalCON MTP® 24 chassis fitting with standard MTP® 24 (ELITE male with 20 N springforce) breakout cable

 NO48FDW-A - opticalCON MTP 48 ADVANCED CHASSIS CONNECTOR_topview.png
NO48FDW-A

MTP® 48 chassis fitting with standard MTP® 48 (ELITE male with 20 N springforce) breakout cable

CAS-FOCD-ADV

opticalCON（オプティカルコン） セルフクリーニングキット
audio
CAS-FOMD

光ファイバー測定用キット
Ordering Information
Product Code                     DescriptionFrom connector         To connector    Fibertype
NKOP12M-A-0-*MTP®12 patch cable MMMTP®12 MM[PC] MaleMTP®12 MM[PC] MaleMultimode
NKOP12SA-A-0-*MTP®12 patch cable SMMTP®12 SM[APC] MaleMTP®12 SM[APC] MaleSinglemode

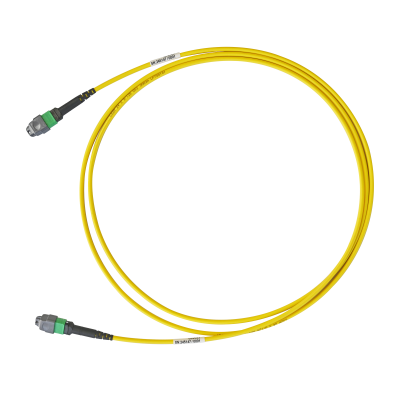

NKOP16SA-A-0-*MTP®16 patch cable SMMTP®16 SM[APC] MaleMTP®16 SM[APC] MaleSinglemode
NKOP24M-A-0-*MTP®24 patch cable MMMTP®24 MM[PC] MaleMTP®24 MM[PC] MaleMultimode
NKOP24SA-A-0-*MTP®24 patch cable SMMTP®24 SM[APC] MaleMTP®24 SM[APC] MaleSinglemode

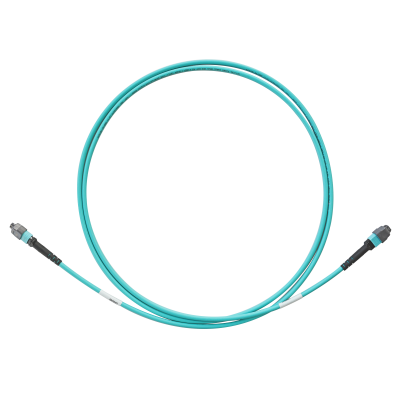

NKOP48M-A-*MTP®48 patch cable MMMTP®48 MM[PC] MaleMTP®48 MM[PC] MaleMultimode
