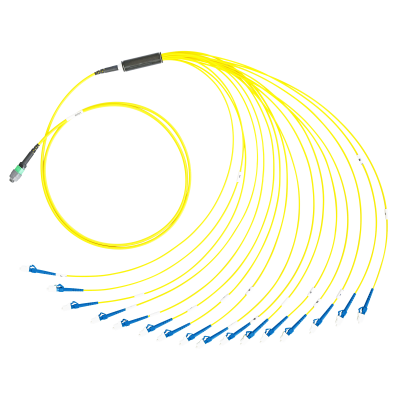

MTP® Breakout Cable
High performance MTP® breakout cable for permanent and temporary installations. Standard premium grade A LCs (single-mode PC; multimode PC) guarantee low insertion loss values. Fan-outs for easy fiber breakout to any standardized LC-connections.
Features & Benefits
- Low loss breakout cable
- Grade A premium ferrules
- Standard breakout connector: LC[PC]
- More breakout connector types available upon request
- High performance USCONEC Elite® Male MTP ferrule
- Interferometer measurement to inspect ferrule geometry
ダウンロード
Technical Information
| Product | |
|---|---|
| Title | MTP® breakout cable |
| Environmental | |
|---|---|
| Temperature range | -20 °C to +70 °C |
| Optical | |
|---|---|
| Insertion loss | Please see individual datasheet (Downloads) |
| Optical connector | MTP® Male SM [APC] to LC [PC] MTP® Male MM [PC] to LC [PC] |
| Optical wiring | Method A |
| Mobile cable | |
|---|---|
| Outer diameter | MTP®12: 3,0mm (approx.) MTP®16: 3,5mm (approx.) MTP®24: 3,8mm (approx.) MTP®48: 4,8mm (approx.) |
| Jacket material | LSZH/OFNP/PVC |
| Core diameter | Multimode 50 µm Singlemode 9 µm |
| Cladding diameter | 125 µm |
| Number of fibers | 12, 16, 24, 48 |
Accessories
NO12FDW-A
オプティカルコンMTP® レセプタクルコネクター 12芯タイプ
audio
NO16FDW-A
MTP® 16 chassis fitting with standard MTP® 16 (ELITE male with 20 N springforce) breakout cable
NO24FDW-A
opticalCON MTP® 24 chassis fitting with standard MTP® 24 (ELITE male with 20 N springforce) breakout cable
NO48FDW-A
MTP® 48 chassis fitting with standard MTP® 48 (ELITE male with 20 N springforce) breakout cable
CAS-FOCD-ADV
opticalCON（オプティカルコン） セルフクリーニングキット
audio
CAS-FOMD
光ファイバー測定用キット
Ordering Information
| Product Code | Description | From connector | To connector | Fibertype | Split-Length |
| NKOB12M-A-0-* | MTP®12 Breakout cable MM | MTP®12 MM[PC] Male | 12x LC[PC] | Multimode | 61 cm |
| NKOB12SA-A-0-* | MTP®12 Breakout cable SM | MTP®12 SM[APC] Male | 12x LC[PC] | Singlemode | 61 cm |
| NKOB16SA-A-0-* | MTP®16 Breakout cable SM | MTP®16 SM[APC] Male | 12x LC[PC] | Singlemode | 100 cm |
| NKOB24M-A-0-* | MTP®24 Breakout cable MM | MTP®24 MM[PC] Male | 24x LC[PC] | Multimode | 100 cm |
| NKOB24SA-A-0-* | MTP®24 Breakout cable SM | MTP®24 SM[APC] Male | 24x LC[PC] | Singlemode | 100 cm |
| NKOB48M-A-0-* | MTP®48 Breakout cable MM | MTP®48 MM[PC] Male | 48x LC[PC] | Multimode | 100 cm |
