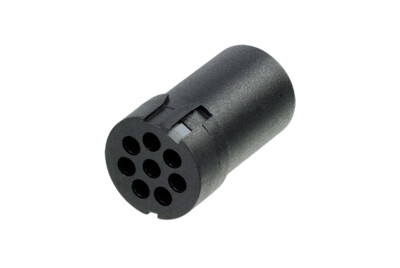

MI8
Male insert for cable and chassis connectors
The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).
The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.
- Contact configuration can be selected from 1 to 8 contacts
- Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
- Precise and robust all metal housing
- Push-pull self-locking system
- Coding system possible (polarization)
Technical Information
| Product | |
|---|---|
| Title | MI8 |
| Connection Type | neutriCON |
| Gender | male |
| Mechanical | |
|---|---|
| Wiresize | |
Male solder contact, gold plated, for cable and chassis connectors

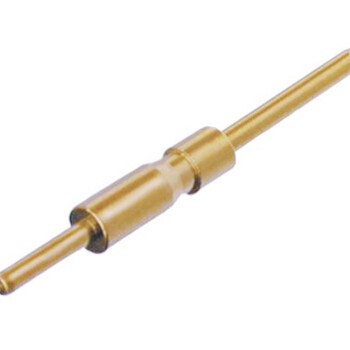

Male PCB contacts, gold plated, for chassis connectors
Bushing and chuck type strain relief (standard)
Crimp type strain relief for cable O.D. 3 - 3.8 mm
Crimp type strain relief for cable O.D. 6 - 7 mm
SC8 W cable connector housing for female and male inserts, black coated, 180° coding and SR8 W bushing with chuck type strain relief - IP54 for waterproof connections
Cable connector housing for female and male inserts, black coated, 180° coding
Cable connector housing for female and male inserts, nickel coated, 180° coding
Cable connector housing for female and male inserts, black coated, 90° coding
Cable connector housing for female and male inserts, nickel coated, 90° coding
Cable connector extension housing for female and male inserts, black coated, 180° coding
*** DISCONTINUED *** Cable connector extension housing for female and male inserts, nickel coated, 180° coding
Cable connector extension housing for female and male inserts, black coated, 90° coding
Cable connector extension housing for female and male inserts, nickel coated, 90° coding
Chassis connector housing for female and male inserts, black coated, 180° coding
Chassis connector housing for female and male inserts, nickel coated, 180° coding
Chassis connector housing for female and male inserts, black coated, 90° coding
Chassis connector housing for female and male inserts, nickel coated, 90° coding
*** DISCONTINUED ***
Colored boots for C-Series
Modular System
