FIBERFOX EBC15 ケーブル 4芯

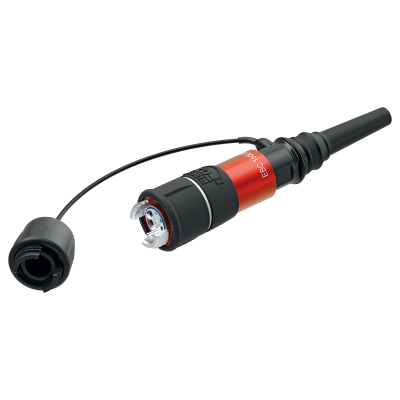

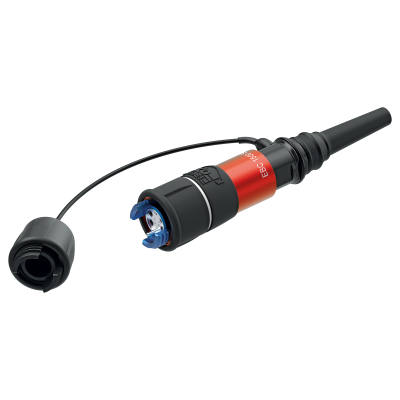

The FIBERFOX 4CH Cable connector is an expanded beam hermaphroditic connector suited for a vast array of applications, including Lighting, Network, PA, Video, Broadcast, Defense & Government, Railway and Petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and is compatible all other connectors which use this standard. Neutrik offers this extraordinary connector solution in singlemode and multimode.

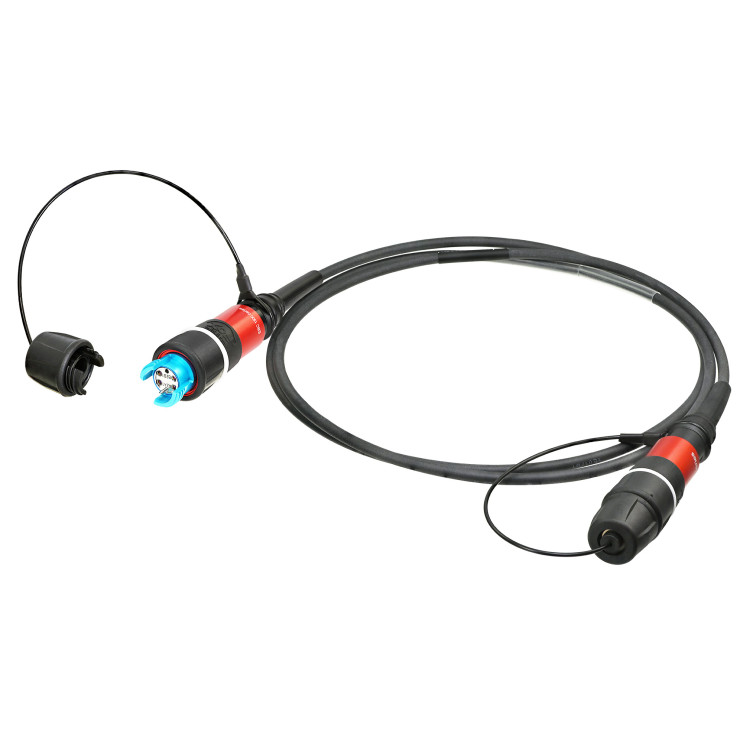

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths and is packed either on a drum or an airspool.

• available in multimode and singlemode
• 光4芯(マルチモード)
• 非嵌合時含め、保護等級IP68をサポート
• メンテナンスフリーで10000回以上の嵌合が可能
• 特殊なクリーニングツールや測定ツールは必要ありません
• アダプター無しでケーブルの延長が可能
• Ø = 5.5mm, 難燃性ポリウレタン, ハロゲンフリー, 曲げに強いケーブル
• EBC1502に準拠
