SCNAC-02

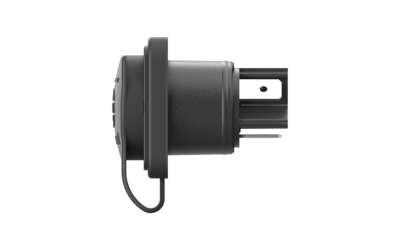

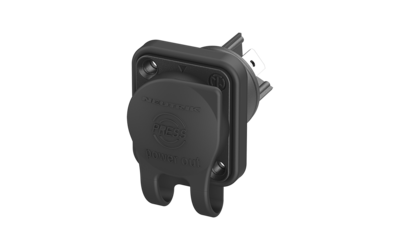

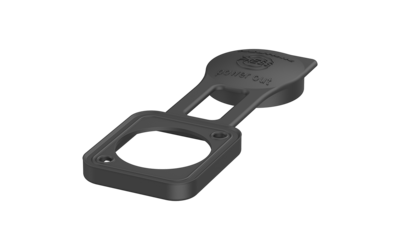

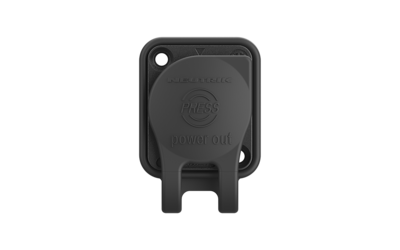

NEW: The D-size rubber sealing cover protects the powerCON 20A chassis connectors NAC3MPXXB* and NAC3MPB-* from dust and water according to protection class IP 65. User friendly and easy to assemble, its compact frame allows for high packing density.
Features & Benefits
- IP 65 water and dust proof test passed for 15 mins with vacuum (-0.2bar) in closed condition, suitable for lighting industry
- UV-resistant material for use in harsh outdoor environment
- Allows high packaging density on the chassis
- User friendly, easier to assemble
Downloads
Technical Information
| Product | |
|---|---|
| Title | SCNAC-02 |
| Material | |
|---|---|
| Material | EPDM |
| Color | Black |
| Marking | Power out |
| Environmental | |
|---|---|
| Flammability acc. to UL 94 | HB |
| Protection class acc. to IEC 60529 | IP 65 |
